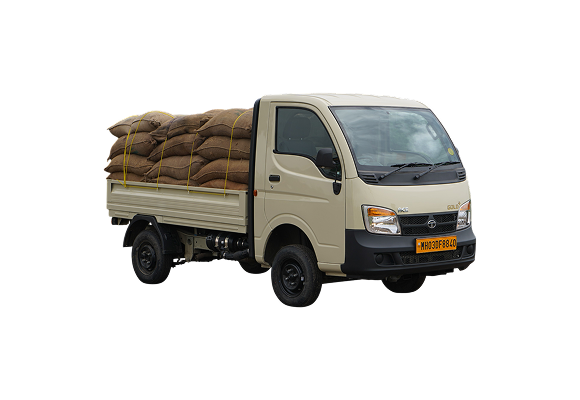

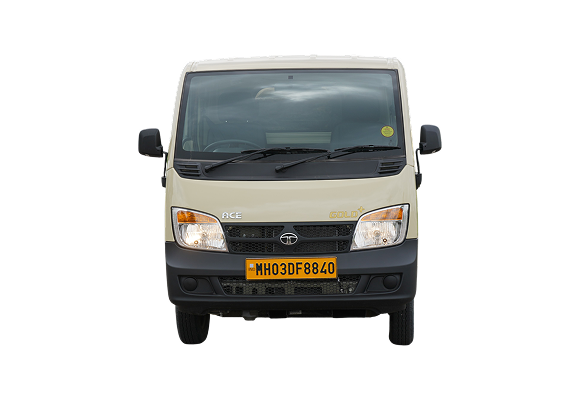

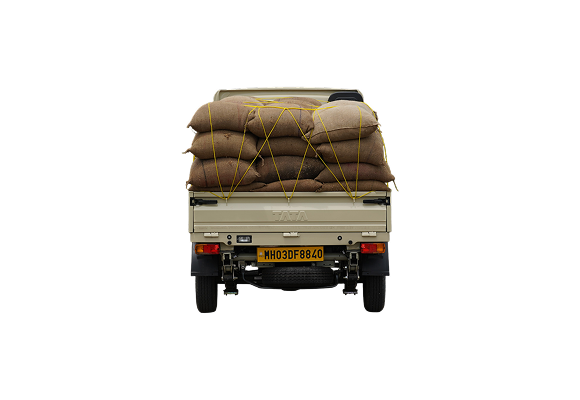

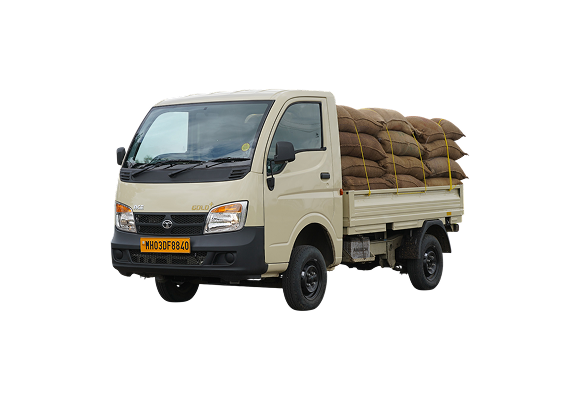

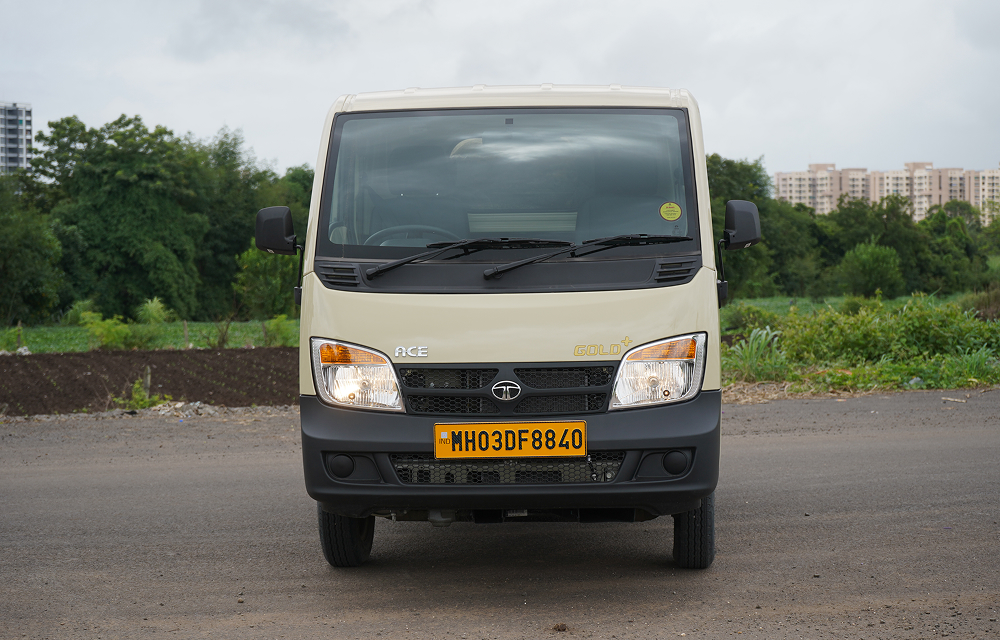

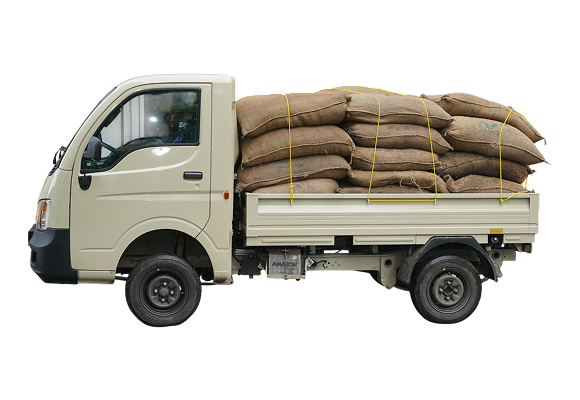

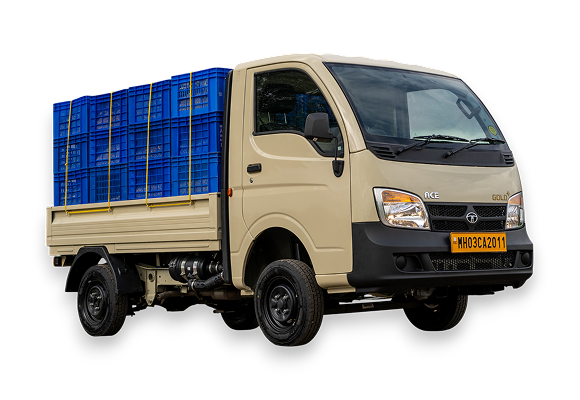

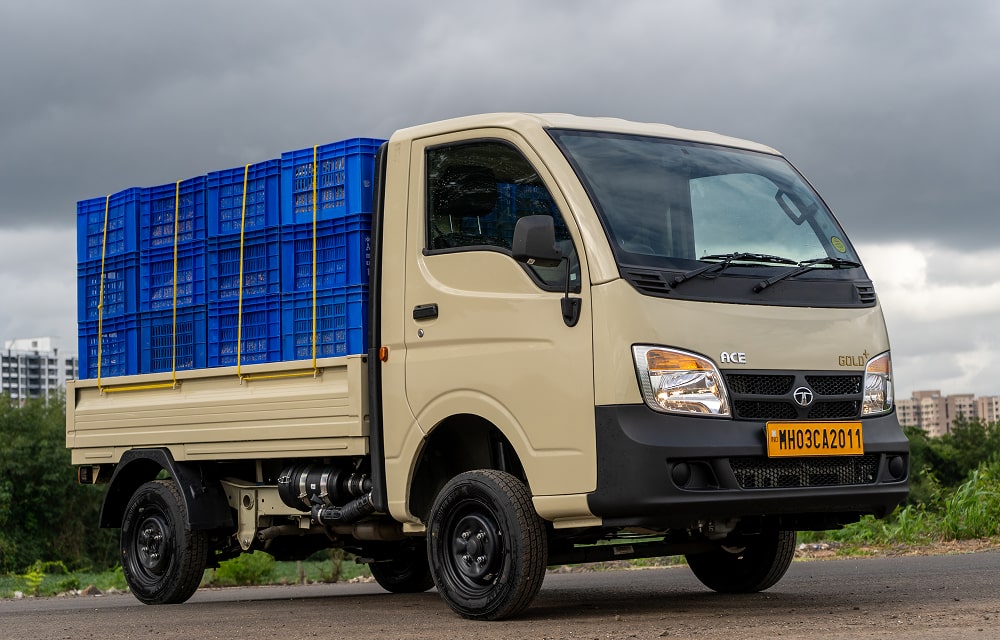

Ace Gold Plus

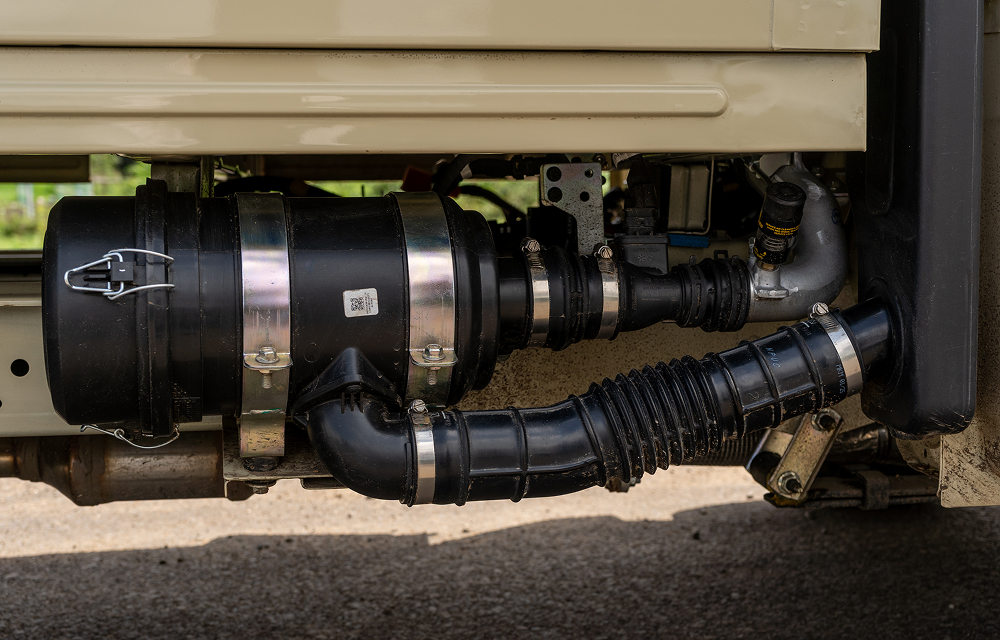

Ace Gold Plus is designed to deliver maximum profit to its customers as it operates on Lean NoX Trap technology enabling it to eliminate the need for usage of Diesel Exhaust Fluid (DEF) which also facilitates in hassle free driving and Greater Peace of Mind for its customers. It comes with a turbocharged 2 cylinder 702 CC engine delivering 16.17 kW (22HP) max power & max torque of 55 Nm.
1815 kg
GVW
30 L
Fuel Tank Capacity
702 cc
Engine
Engine
| Type | 4 Stroke, Turbocharged InterCooled, Direct Injection Common Rail Diesel engine |
| Power | POWER Mode - 16.2 kW (22PS) @ 3600 rpm ; CITY Mode – 12.8 kW (17PS) @ 3600 rpm |
| Torque | POWER Mode - 55 Nm@ 2000 – 2600 rpm ; CITY Mode - 40 Nm@ 2000 – 2600 rpm |
| Gradeability | 30% (Power Mode) |
Clutch and Transmission
| Gear Box Type | GBS G65-5/6.31 |

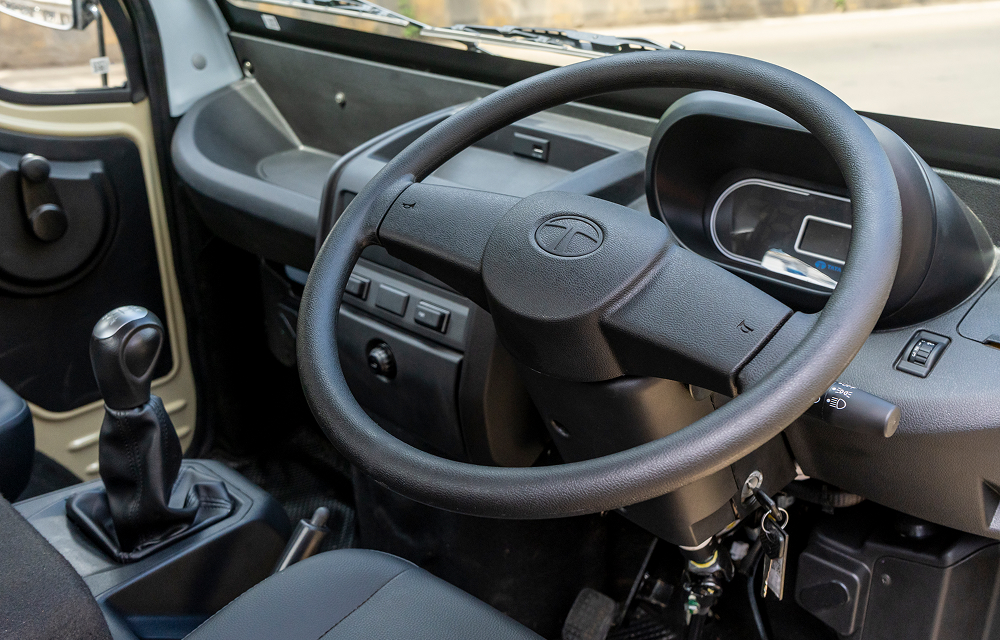

| Steering | Manual Steering System 27.9-30.4(Variable); 380 mm Dia |
| Max Speed | 65 kmph |
Brakes
| Brakes | Front - Disc brakes; Rear - Drum Brakes |
| Suspension Front | Parabolic leaf spring |
| Suspension Rear | Semi - Elliptical leaf spring |
Wheels and Tyres
| Tyres | 145R12 LT 8PR RADIAL TUBELESS TYRES |
Vehicle Dimensions (mm)
| Length | 3800 mm |
| Width | 1500 mm |
| Height | 1845 mm |
| Wheelbase | 2100 mm |
| Front Track | 1300 mm |
| Rear Track | 1320 mm |
| Ground Clearance | 160 mm |
| Min TCR | 4300 mm |
Weight (kg)
| GVW | 1815 kg |

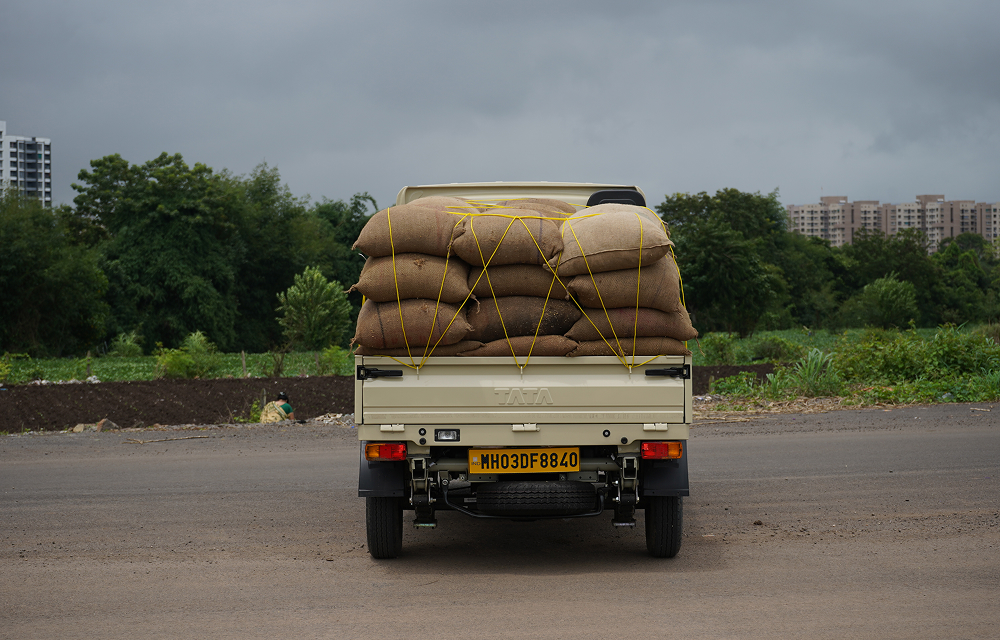

| Payload | 900 kg |
Performance
| Gradeability | 30% (Power Mode) |
Seating & Warranty
| Seats | D+1 Seating |
| Warranty | 3 year / 1 00 000 km (whichever is earlier) |
