Small Commercial Vehicles
-
-
-

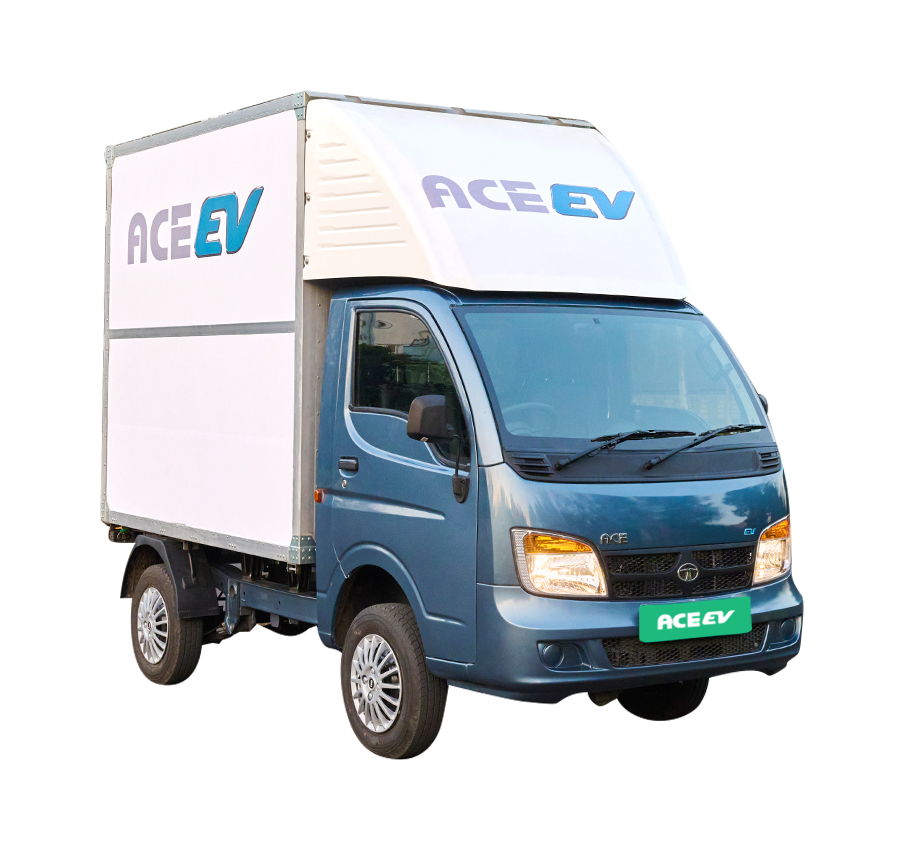

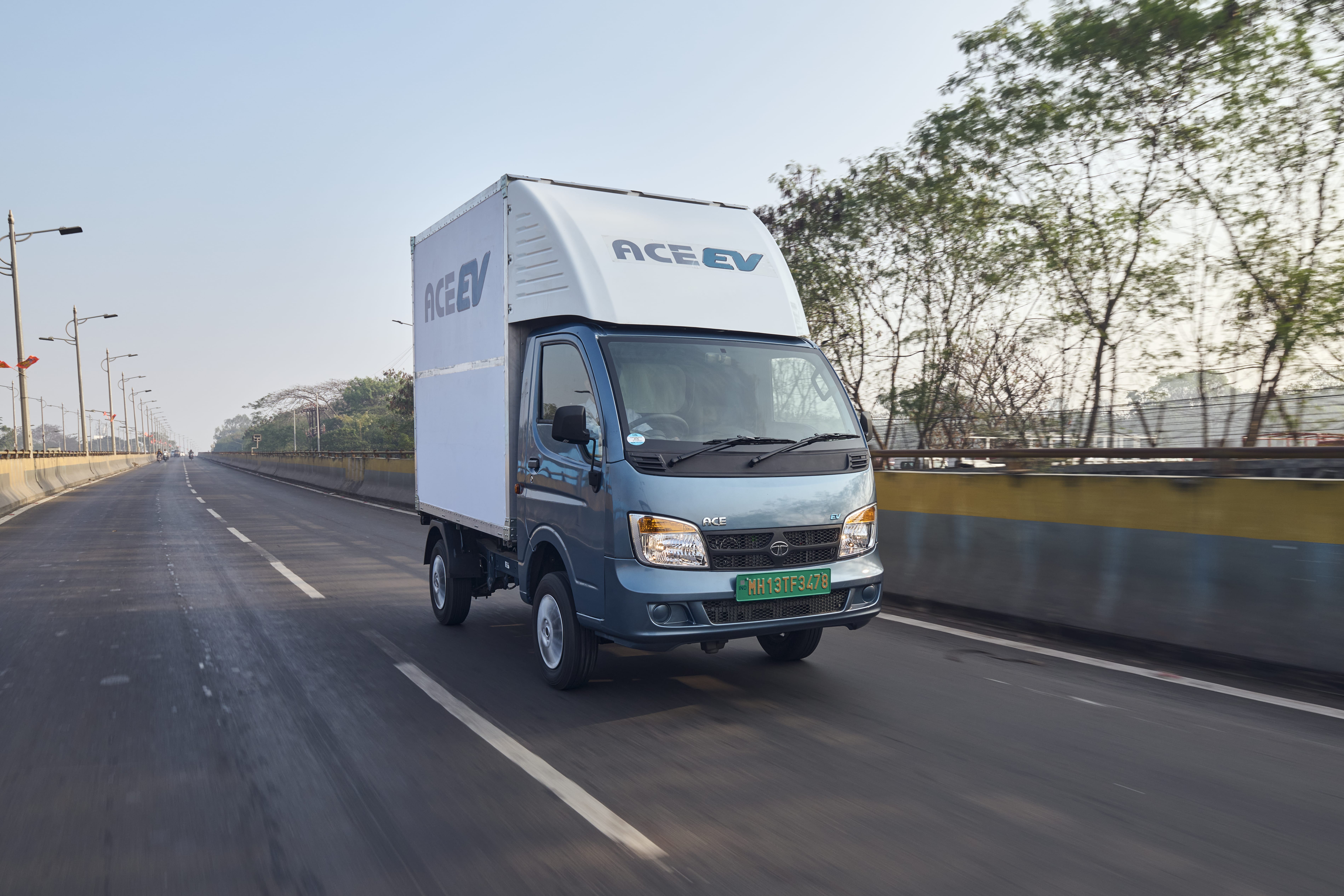

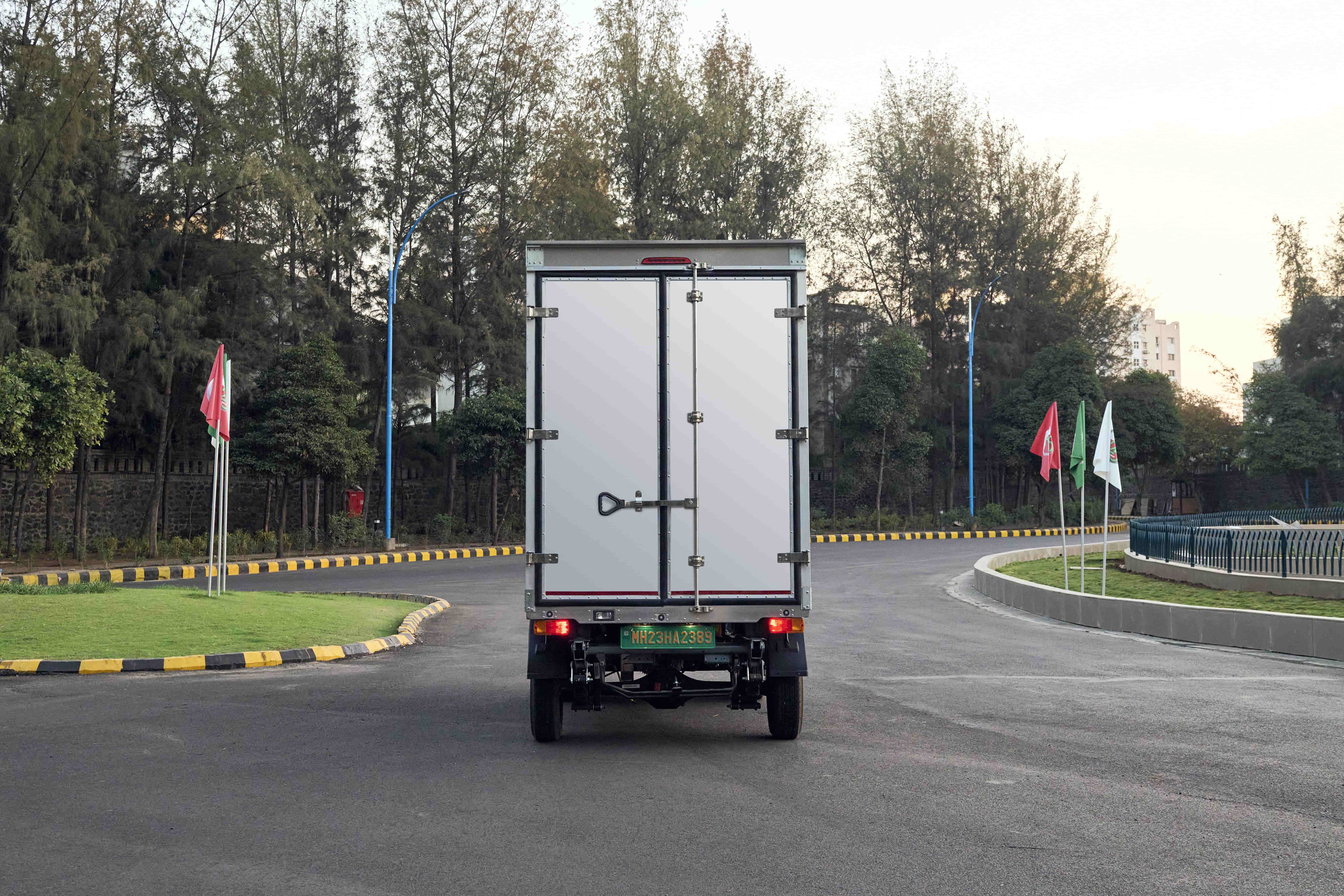

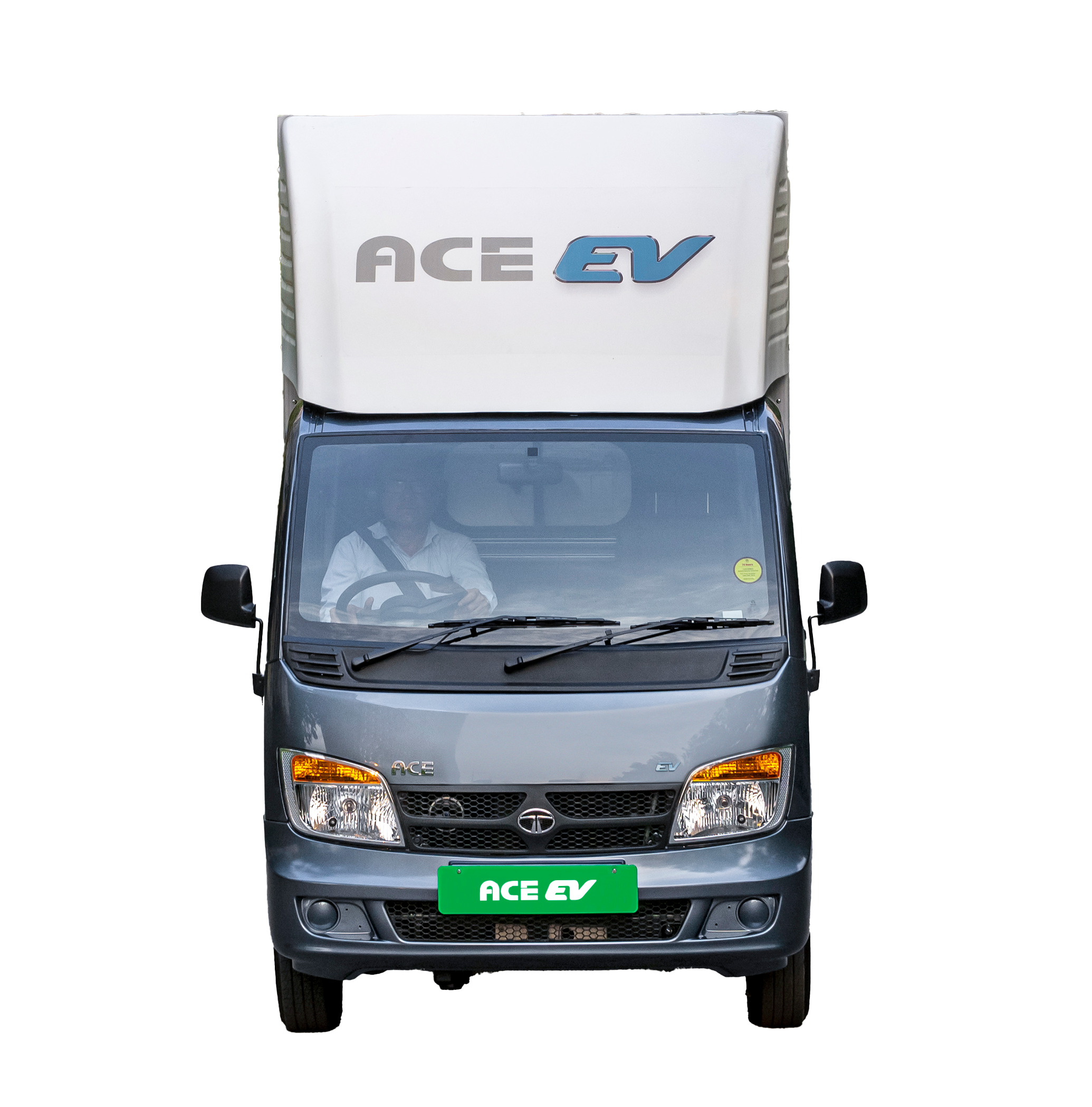

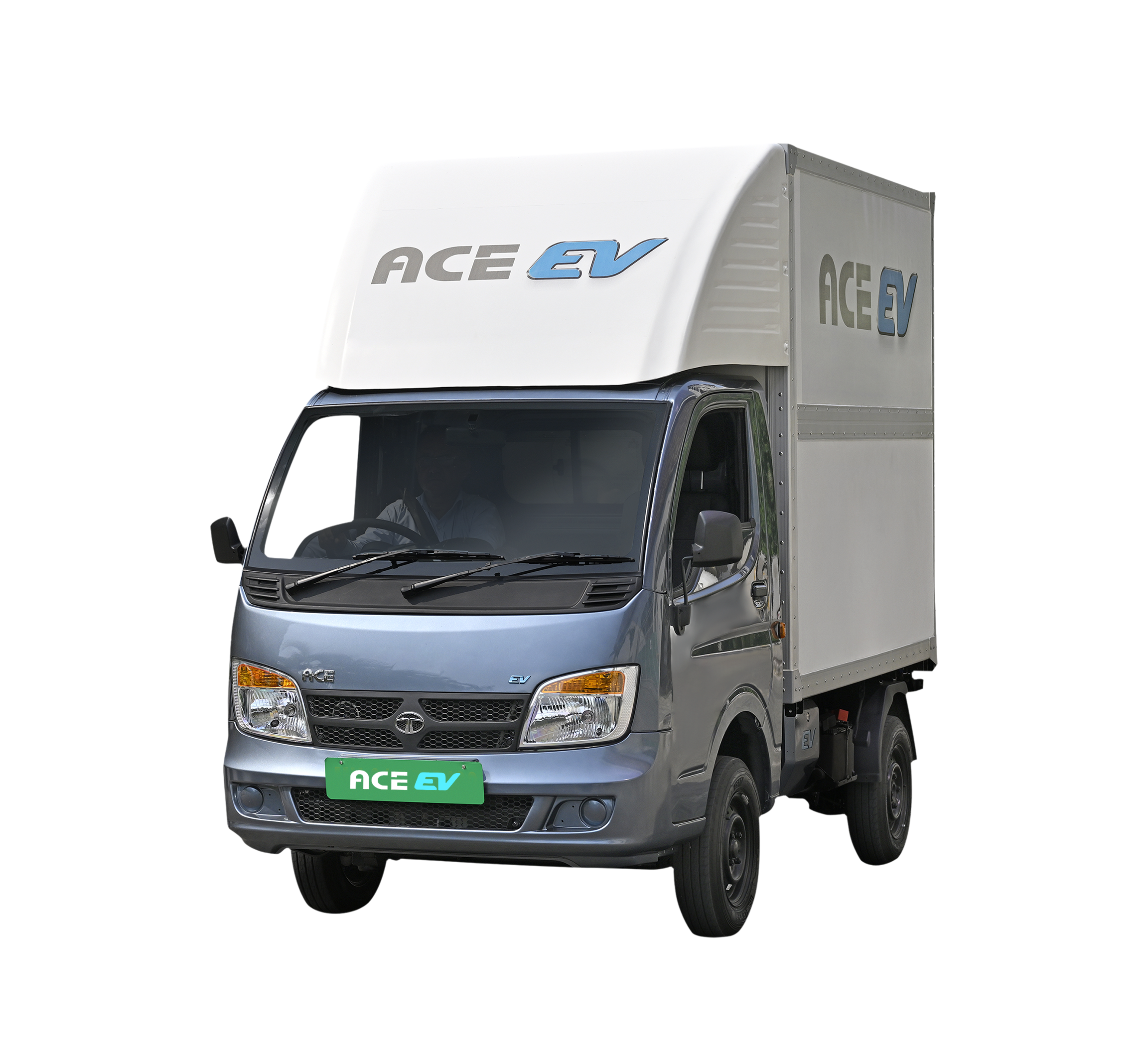

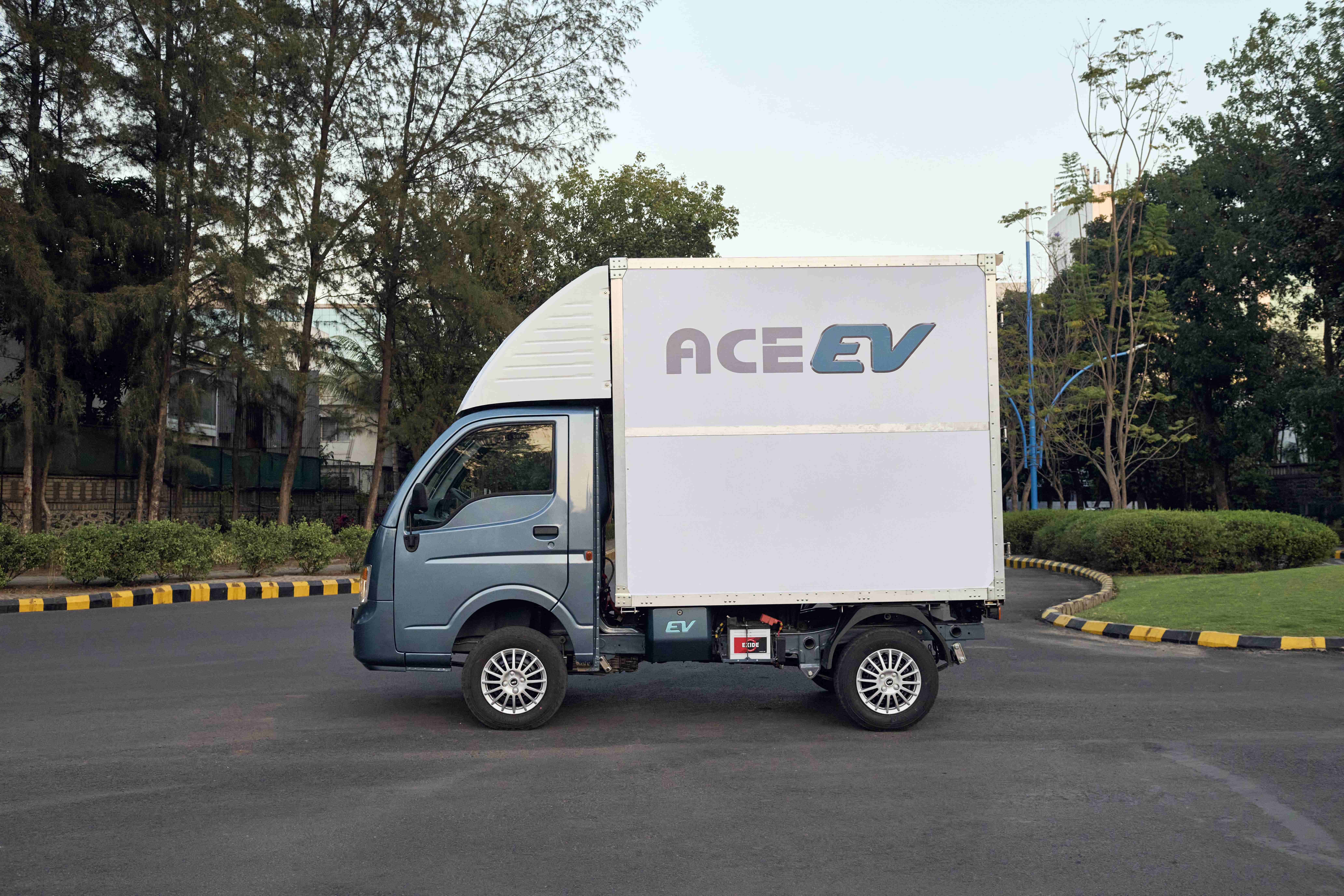

TATA ACE EV
Presenting a glimpse into the future of commercial vehicles as Tata Motors hands off the keys to Ace EV - a cutting edge innovation that is moving India towards sustainable mobility in last mile delivery.
1840
GVW
21.3
Battery Capacity
27 kW (36 HP) @ 2000 rpm
Motor Power
Earn More with Better Mileage and Better Pickup
- 7-inch infotainment system

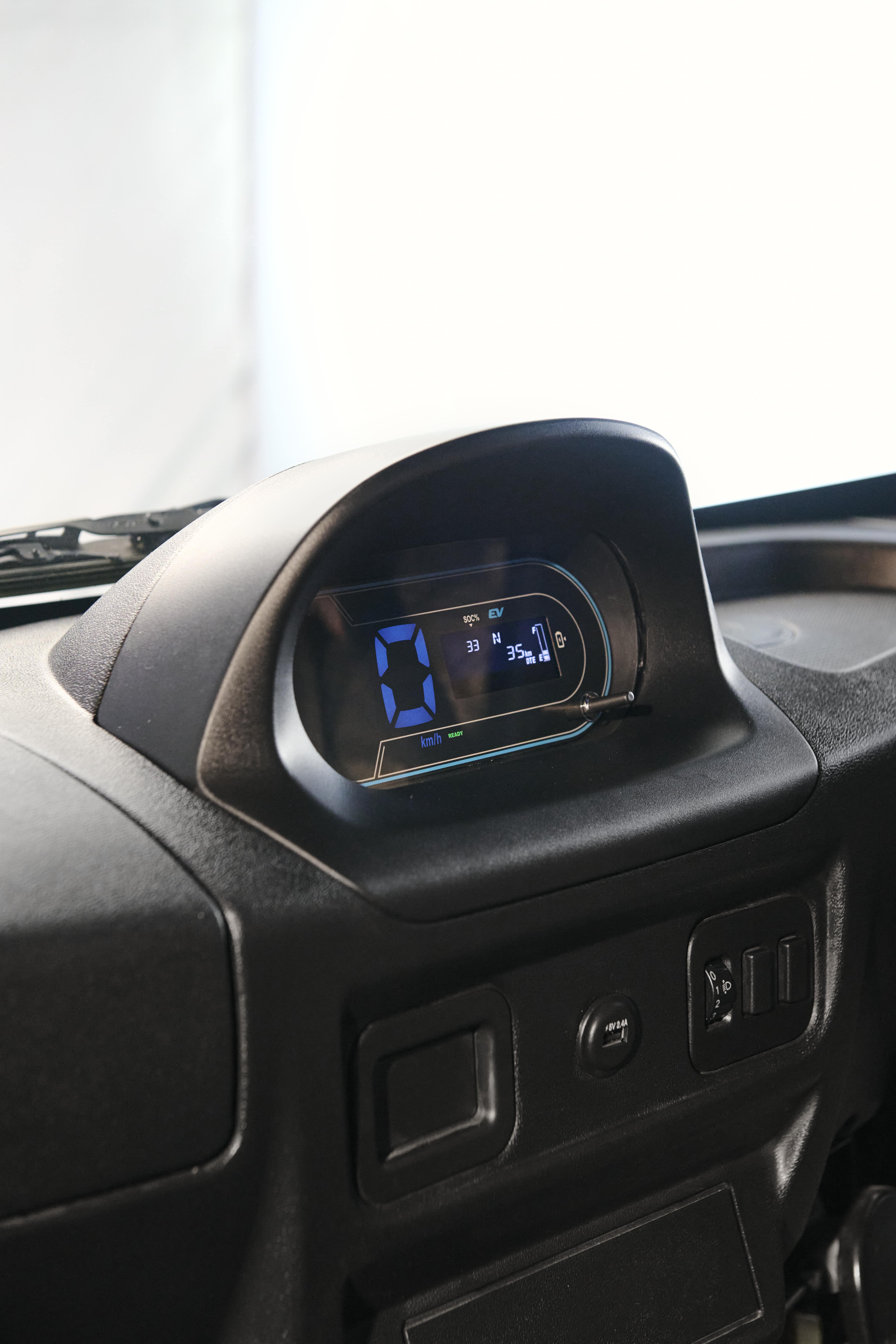

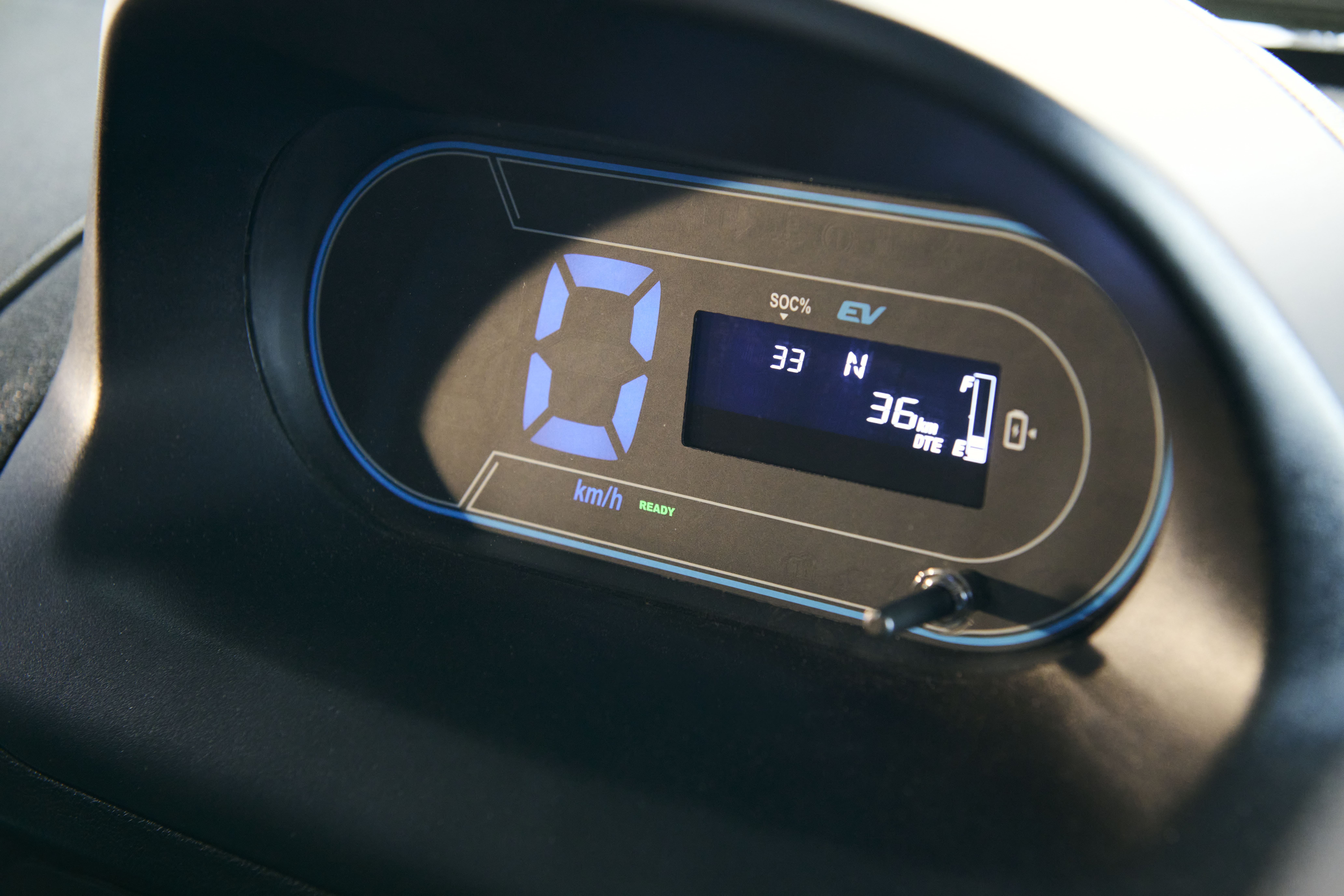

- New gen instrument cluster
- 0 to 30 kmph in 7* secs
- IP67 waterproofing standards
- Best in class gradeability 22%
- Navigation
- Vehicle tracking
- Fleet telematics
- Geo fencing
- Battery charges while braking
- Fast charging in 105* mins
Engine
| Type | AC Induction Motor |
| Power | 27 kW (36 HP) @ 2000 rpm |
| Torque | 130 Nm @ 2000 rpm |
| Gradeability | 20% |
Clutch and Transmission

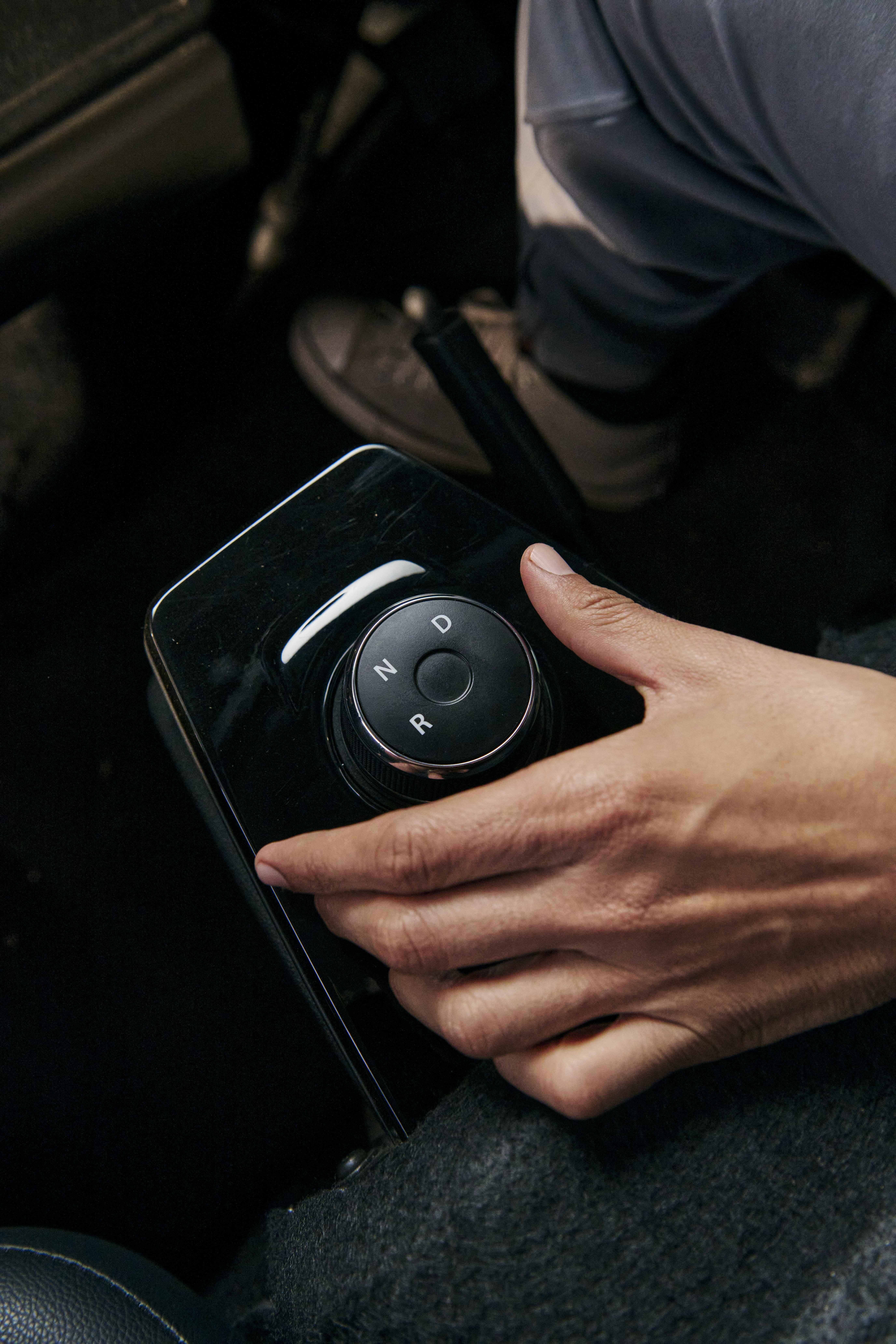

| Gear Box Type | Single speed Gearbox |
| Steering | Mechanical, Variable Ratio |
| Max Speed | 60 kmph |
Brakes
| Brakes | Front - Dual circuit Hydraulic brakes Front –Disc, Rear Drum |
Wheels and Tyres
| Tyres | 155 R13 LT 8PR Radial (Tubeless Type) |
Vehicle Dimensions (mm)
| Length | 3800 |
| Width | 1500 |
| Height | 2635(Unladen) |
| Wheelbase | 2100 |
| Ground Clearance | 160 |
| Min TCR | 4300 |
Weight (kg)
| GVW | 1840 |
| Payload | 600 |
Battery
| Battery Chemistry | LFP (Lithium-Iron Phosphate) |
| Battery Energy (kWh) | 21.3 |
| IP Rating | 67 |
Performance
| Gradeability | 20% |
Seating & Warranty
| Seats | D+1 |
| Warranty | 7 years or 1.75 lakh which ever is earlier |
Gaurav Sweets & Tata Motors – Powering Freshness with EV Innovation!
