Small Commercial Vehicles
-
-
-
-
-
Ace Pro Bi-fuel

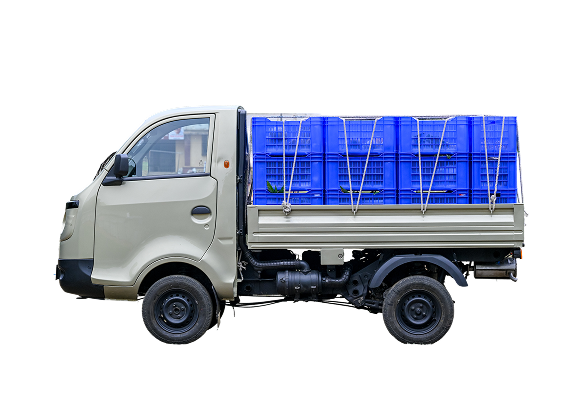

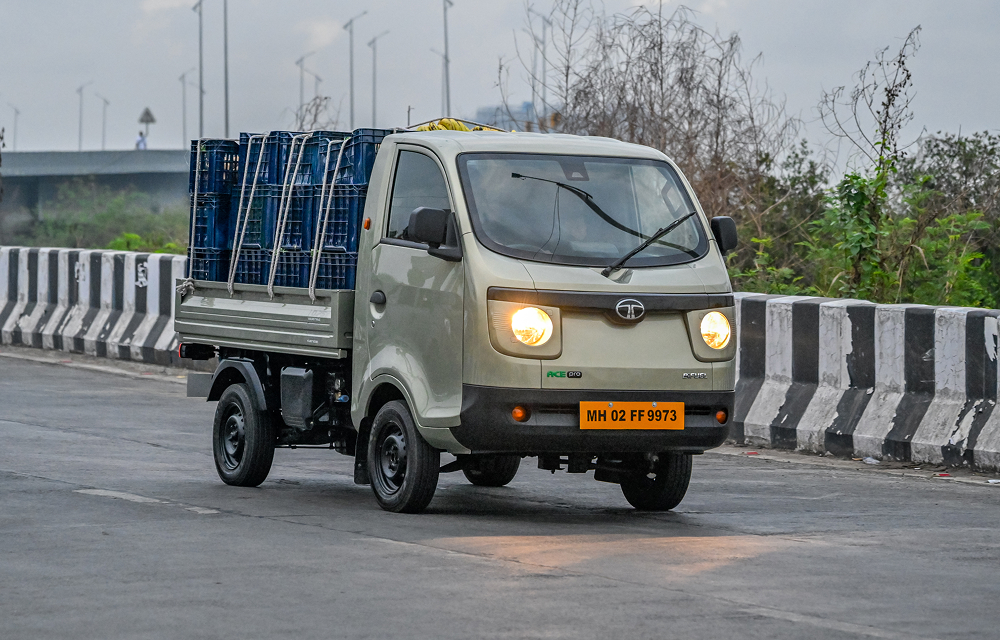

The Tata Ace Pro Bi-fuel is the ideal partner for cost-effective last-mile deliveries, combining the economic advantage of CNG with the reliability of petrol. This mini truck can efficiently handle high-volume goods in a single trip, maximizing customer’s earnings per route.
750 kg
Payload
NA
Load Body Length
CNG - 45 Liters (1 cylinder) ; Petrol 5 Liters
Fuel Tank Capacity
Step into the future of last-mile
delivery with the Tata Ace Pro
Step into the future of last-mile delivery with the Tata Ace Pro
Engine
| Type | - |
| Power | 26 Ps @ 4000 rpm (CNG Mode) |
| Torque | 51 Nm @ 2 500 rpm (CNG Mode) |
| Gradeability | - |
Clutch and Transmission
| Gear Box Type | TA-59 with drive shafts |
| Steering | Mechanical steering (Rack & Pinion) |
| Max Speed | 55 km/h |
Brakes
| Brakes | Front - Disc brakes; Rear - Drum Brakes |
| Regenerative Brake | - |
| Suspension Front | Independent, McPherson strut |
| Suspension Rear | Semi trailing arm with coil spring & hydraulic damper |
Wheels and Tyres
| Tyres | 145R12 |
Vehicle Dimensions (mm)
| Length | 3560 mm |
| Width | 1497 mm |
| Height | 1820 mm (Unladen) |
| Wheelbase | 1800 mm |
| Front Track | - |
| Rear Track | - |
| Ground Clearance | 170 mm (Minimum in Laden condition) |
| Min TCR | 3 750 m |
Weight (kg)
| GVW | 1535 kg |
| Payload | 750 kg |
Battery
| Battery Chemistry | - |
| Battery Energy (kWh) | - |
| IP Rating | - |
| Certified Range | - |
| Slow Charging time | - |
| Fast Charging time | - |
Performance
| Gradability | - |
Seating & Warranty
| Seats | D+1 |
| Warranty | 72000 kms or 2 years** (whichever is earlier)S) |
| Battery Warranty | - |
