Small Commercial Vehicles
-
-
-
-
-

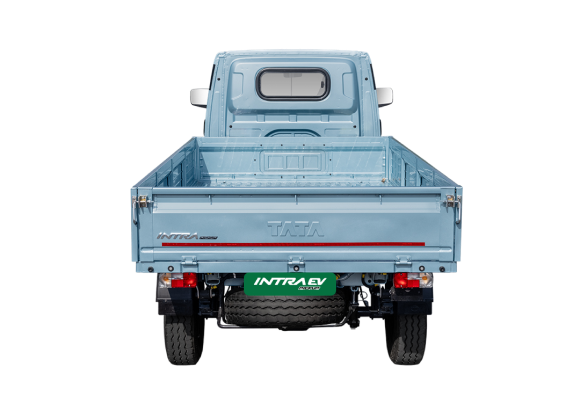

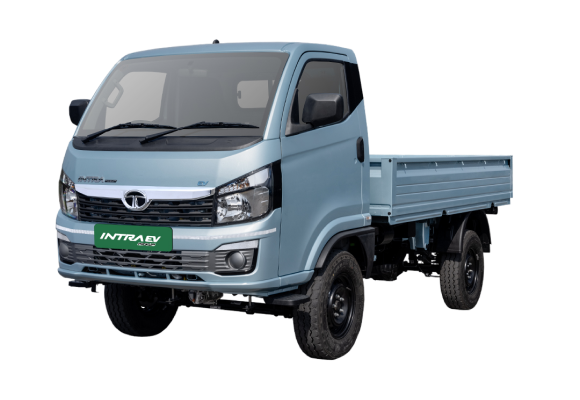

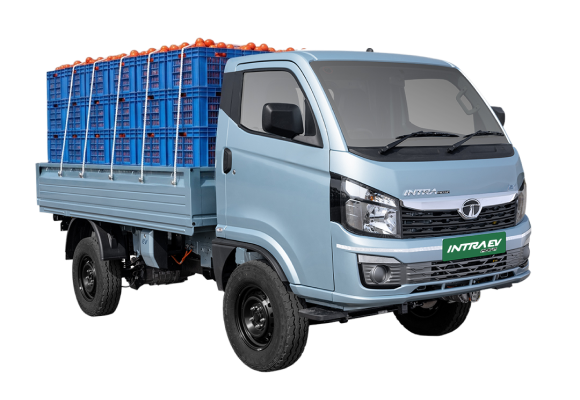

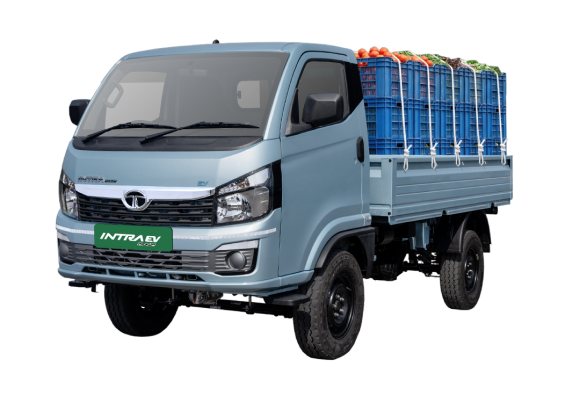

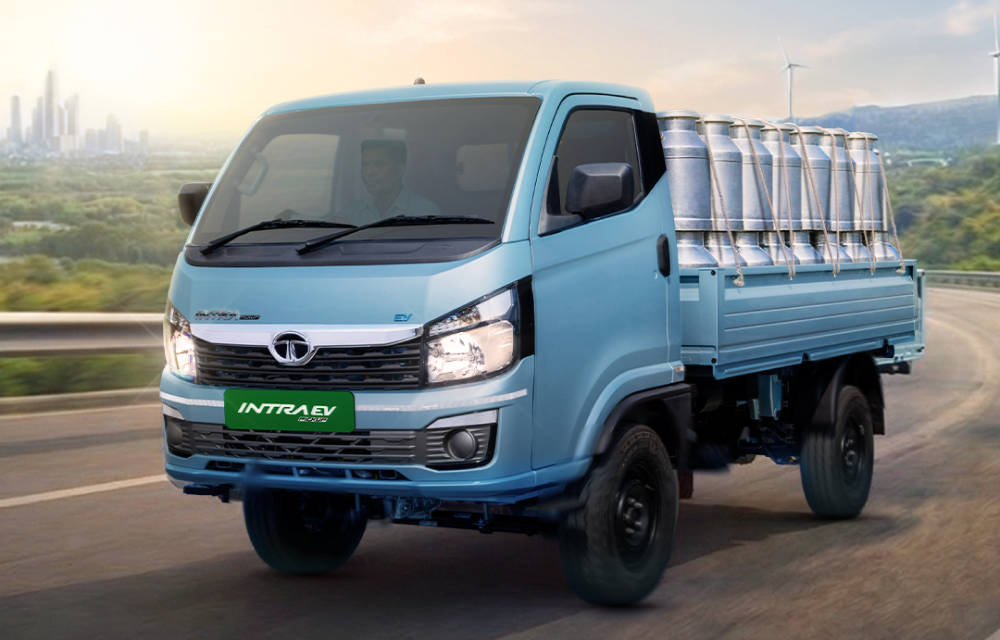

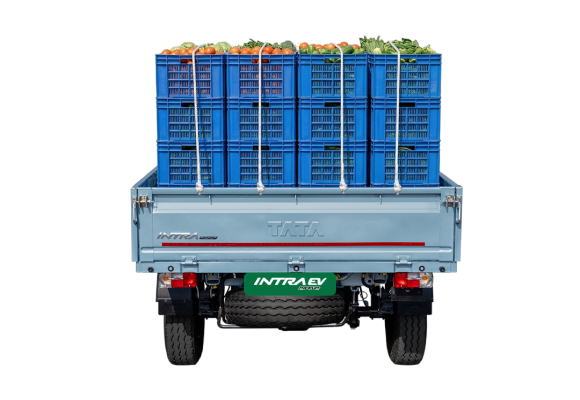

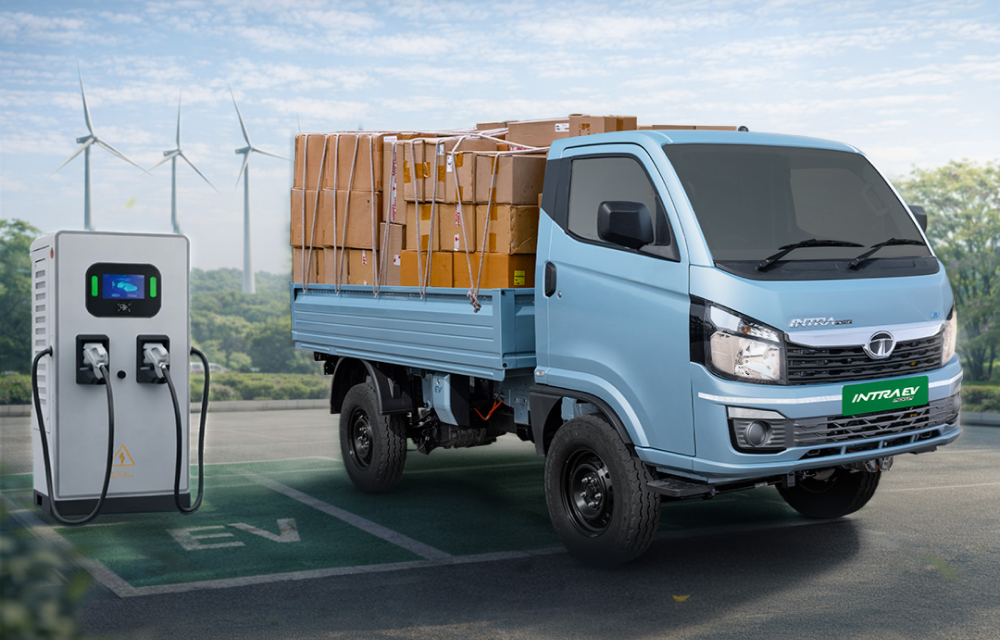

INTRA EV Pickup
3310 kg
GVW
28.2 KWH (LFP)
Battery Capacity
72kw/97hp
Motor Power
Engine
| Power | 72kw/97hp |
| Torque | 230 Nm |
| Gradeability | 23% |
Clutch and Transmission

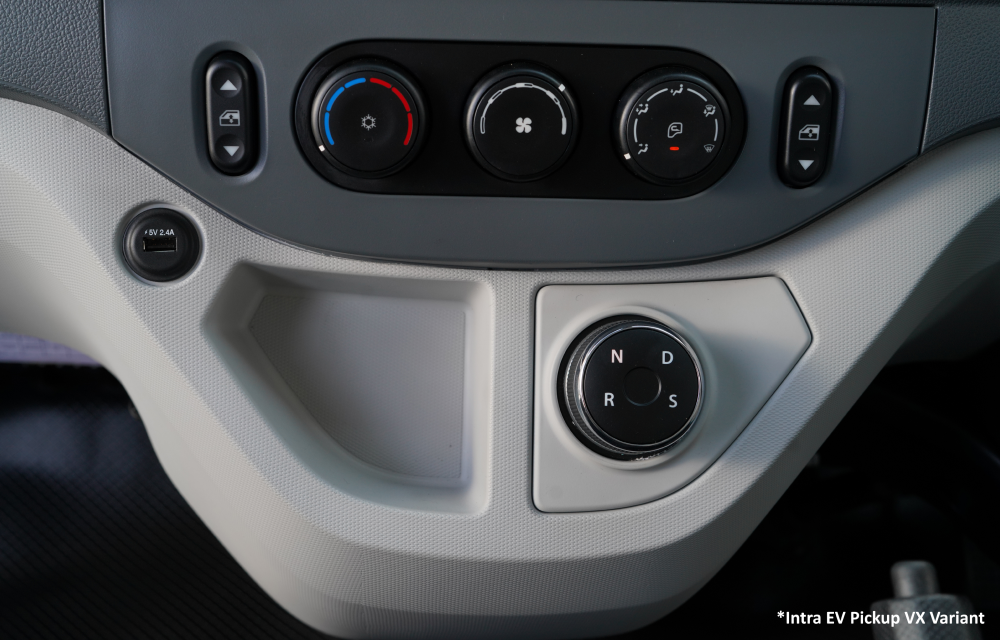

| Gear Box Type | Automatic with e-Axle |

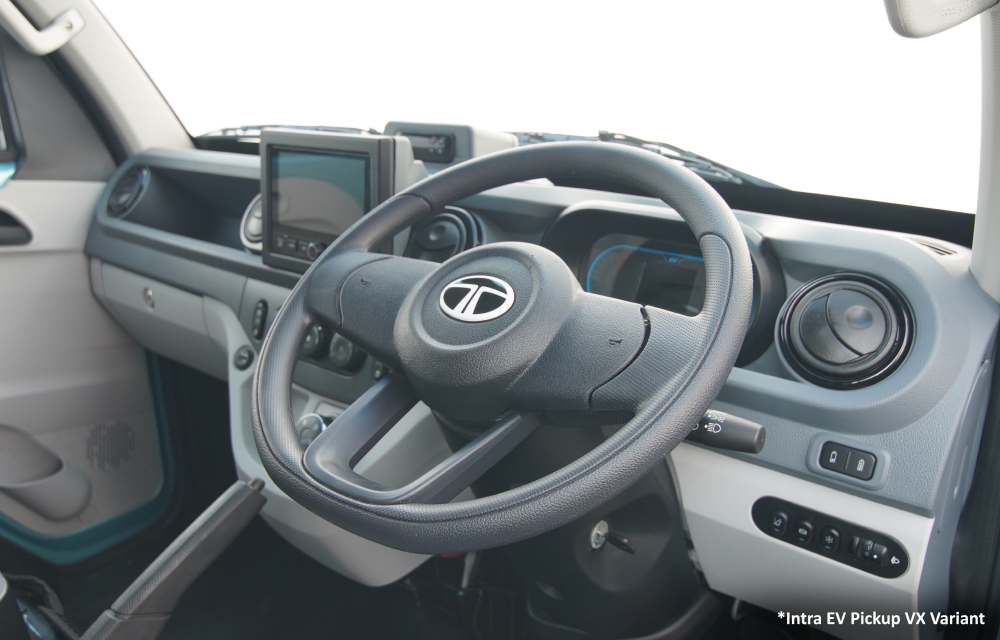

| Steering | EPAS (Electric Power Assisted Steering) |
| Max Speed | 80 km/h |
Brakes
| Brakes | Front - Disc brakes; Rear - Drum Brakes |
| Suspension Front | Rigid Suspension with parabolic leaf spring |
| Suspension Rear | Rigid Suspension with parabolic leaf spring |
Wheels and Tyres
| Tyres | 215/75 R15 |
Vehicle Dimensions (mm)
| Length | 4734 / 4745 mm |
| Width | 1750 mm |
| Height | 2010 |
| Wheelbase | 2600 |
| Front Track | 1440 mm |
| Rear Track | 1452 mm |
| Ground Clearance | 185 |
Weight (kg)
| GVW | 3310 kg |
| Payload | 1750 kg |
Battery
| Battery Energy (kWh) | 28.2 KWH (LFP) |
| Certified Range | 211*km (Certified), 125 - 140** km (Real-world) |
| Fast Charging time | 50 min |
Performance
| Gradeability | 23% |
