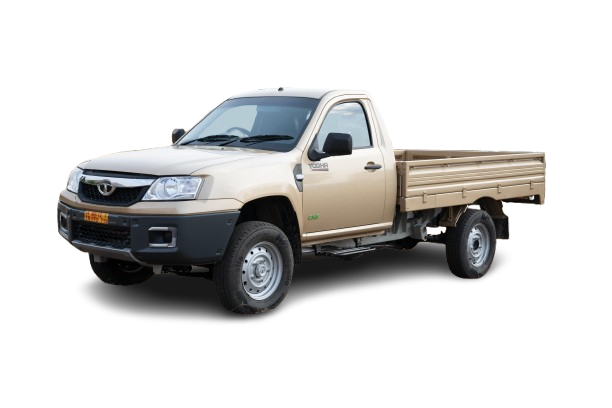

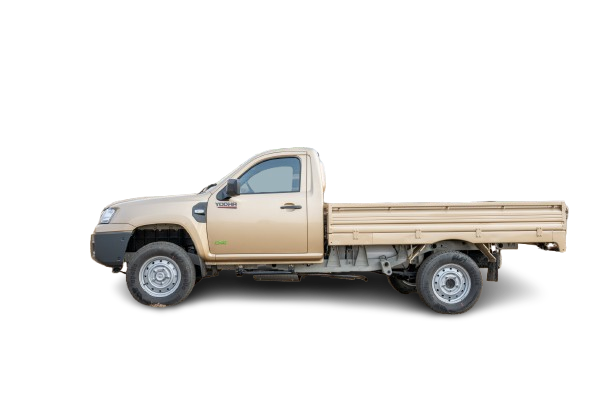

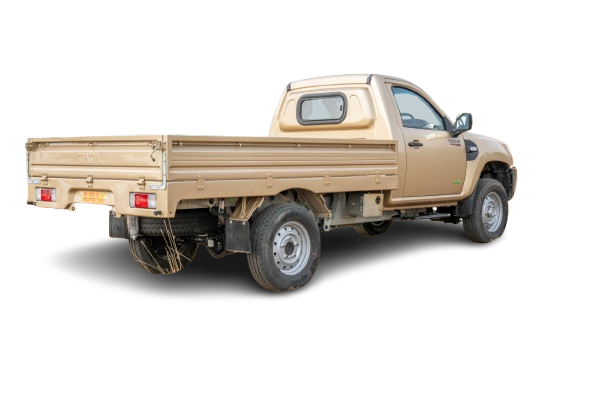

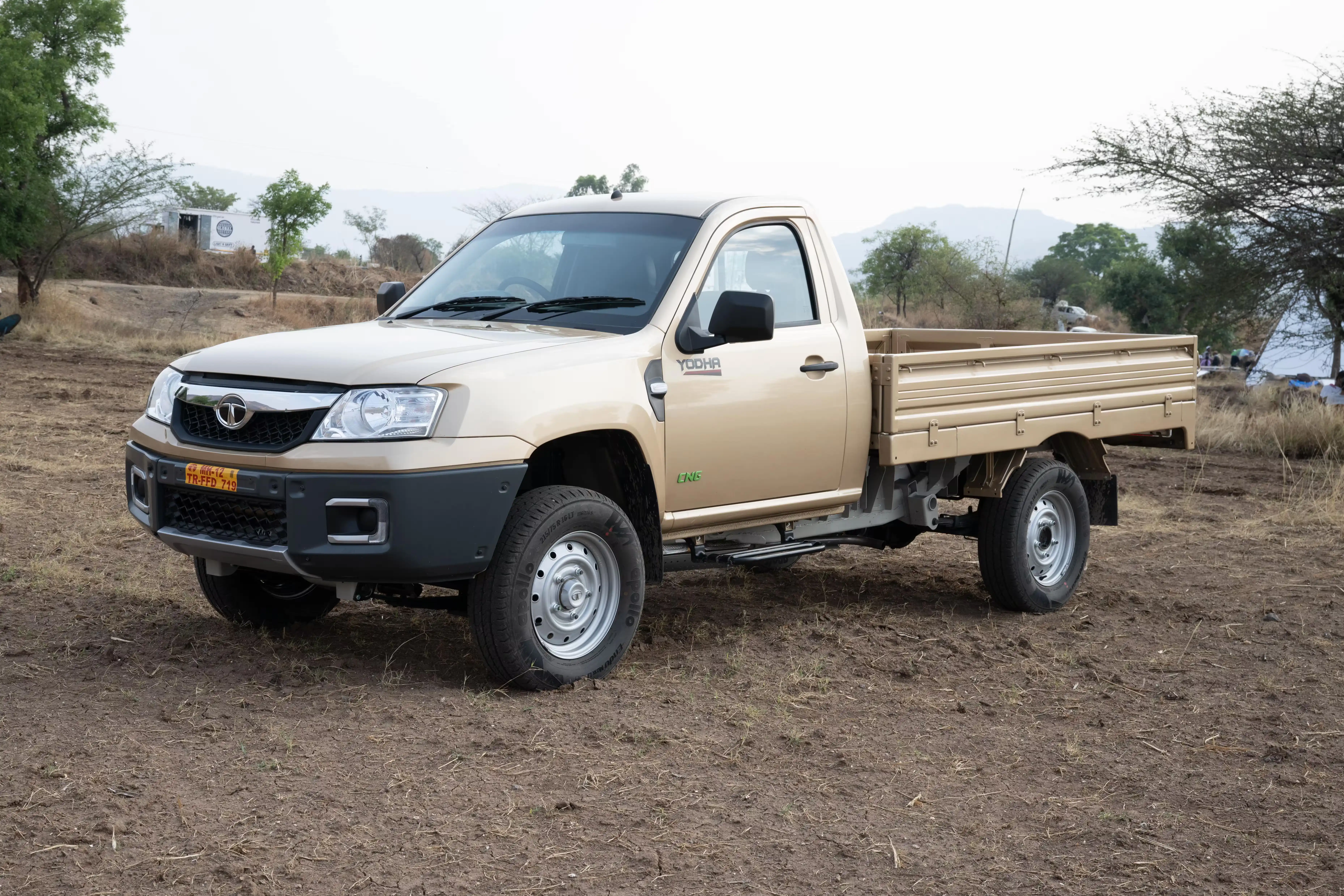

Yodha CNG

Tata Yodha CNG is identified among the target audience as a muscular, powerful and robust CNG Powered pickup vehicle to carry heavier loads and pull off faster turn-around time owing to the powerful engine and strong aggregates. The brand resonates with the customer’s desires for an ideal pickup vehicle – strong and agile, an anthropomorphism of a warrior.

3 490kg

GVW

2 cylinders, 90 L water capacity

Fuel Tank Capacity

2 956 CC

Engine

Download Brochure

Overview
Specifications

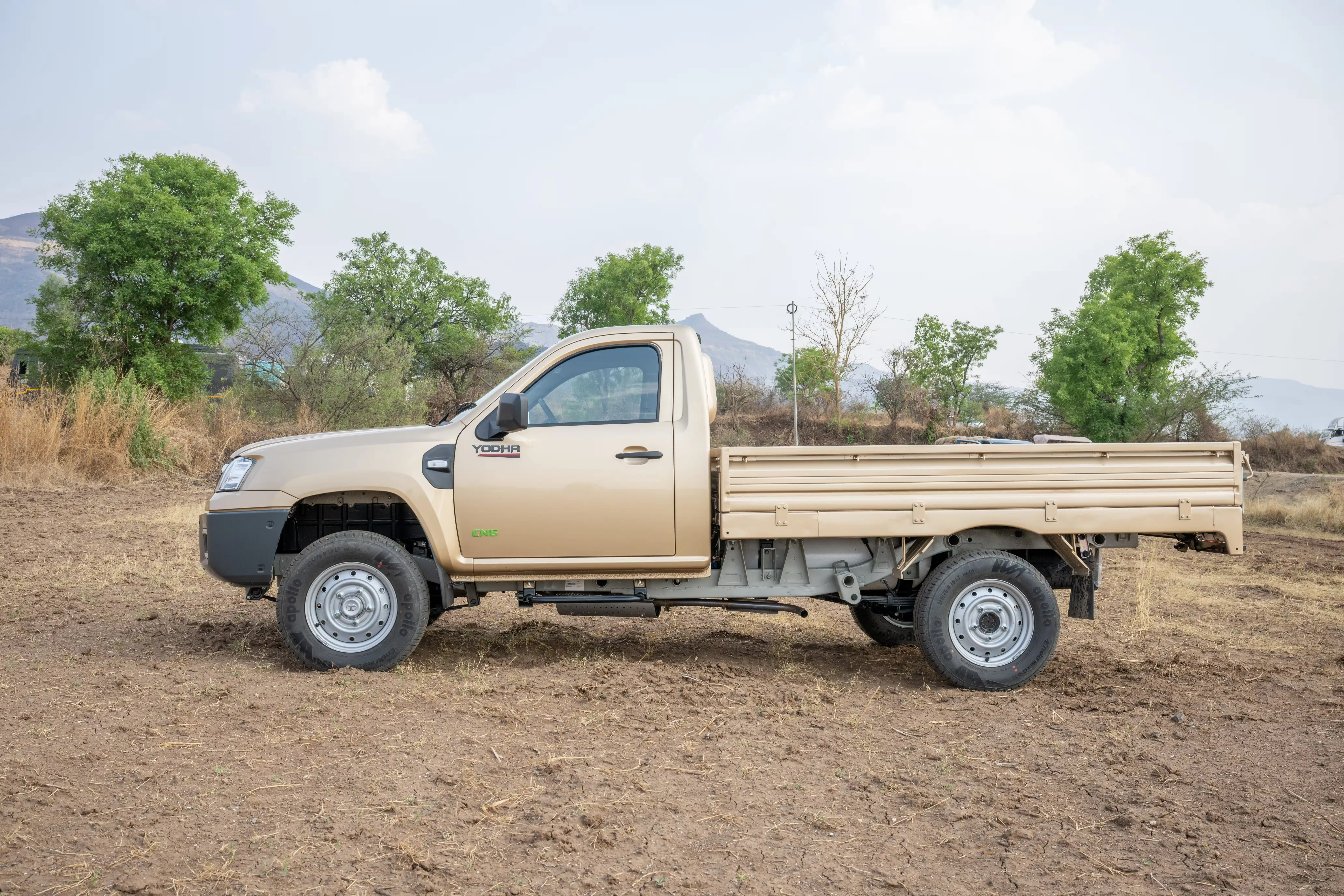

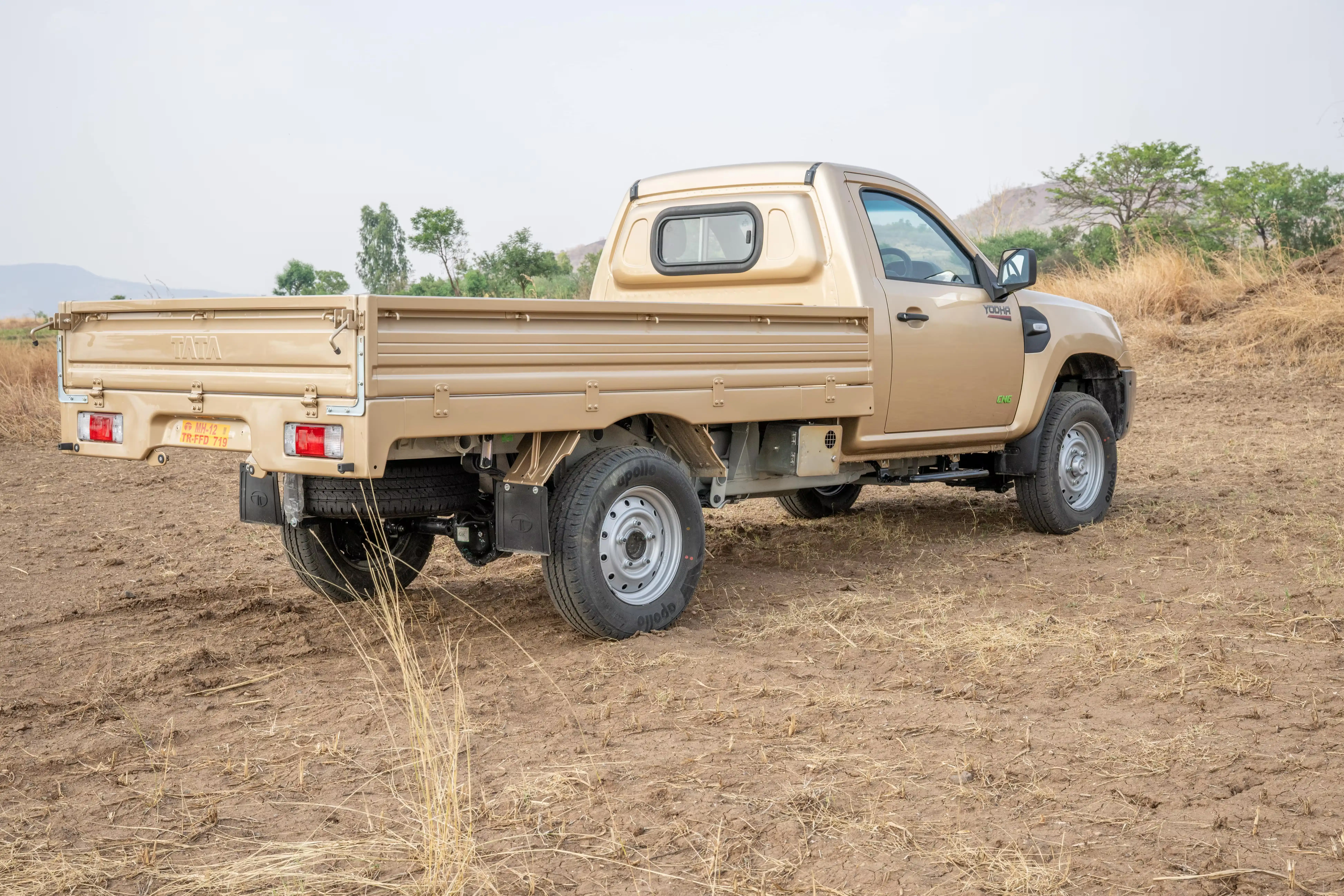

Gallery

Earn More with Better Mileage and Better Pickup

Tata Yodha CNG is equipped with most powerful CNG engine in the segment, capable of generating 55.2 kW power and 200 Nm Pickup and hence is capable of carrying higher load over rough terrain while completing more number of trips on account of faster turn-around time.

Rigid semi-elliptical leaf spring suspension with 6 leaves on front and 9 leaves on rear side, and 4 mm thick tubular chassis frame, makes the vehicle suitable for carrying all kind of load in volumes and masses.
16” big tyres enhances stability in high load condition and high speed operation.

Lubricated for life (LFL) aggregates requires no greasing throughout the vehicle life.
Engine oil change interval of 20,000 KMs – low vehicle service cost.

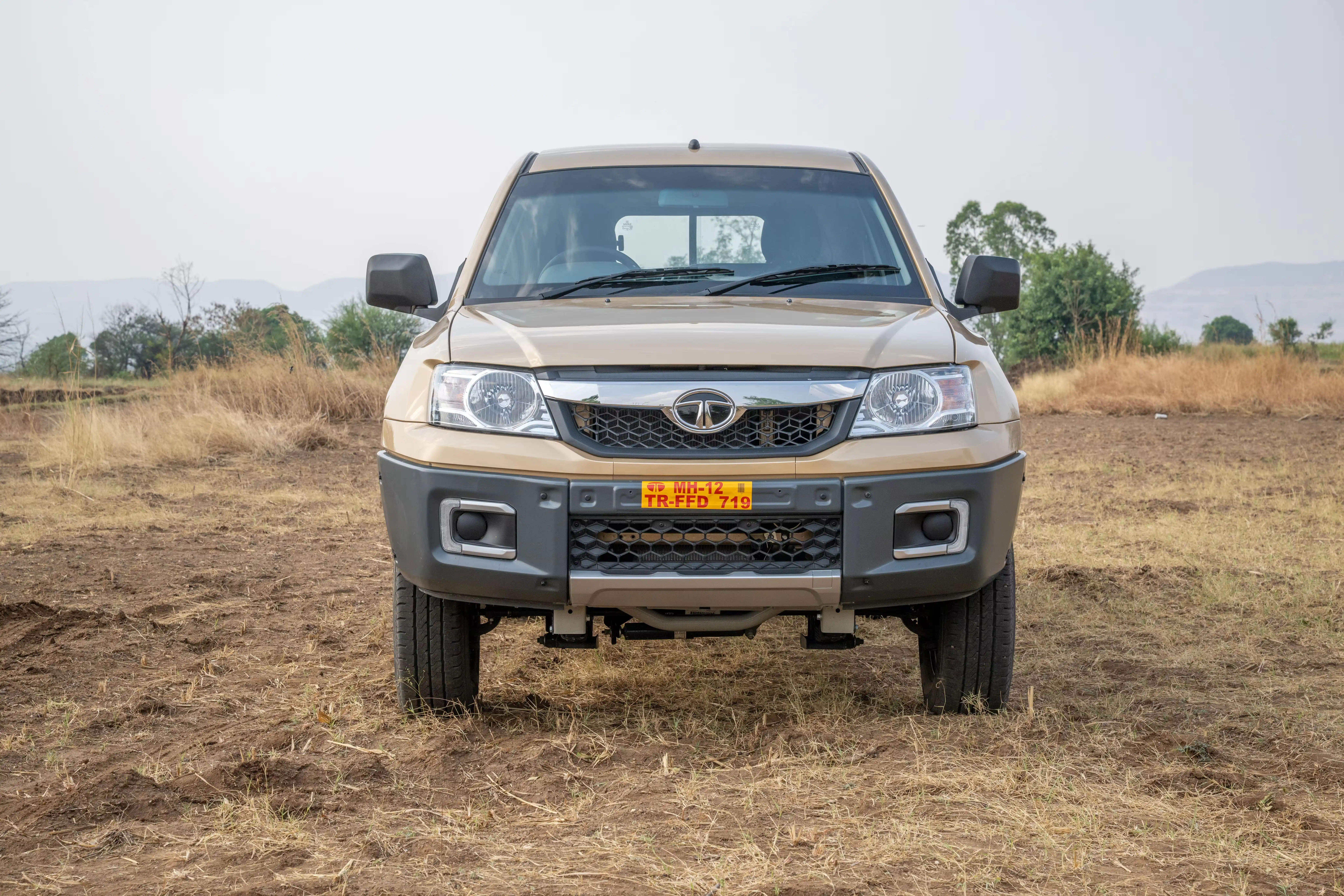

Stone-guard on front end for enhanced safety.
Sturdy 3-piece metallic bumper for ease of repairs and serviceability.
Anti-roll bar on front side for stability on gradients and unleveled roads.

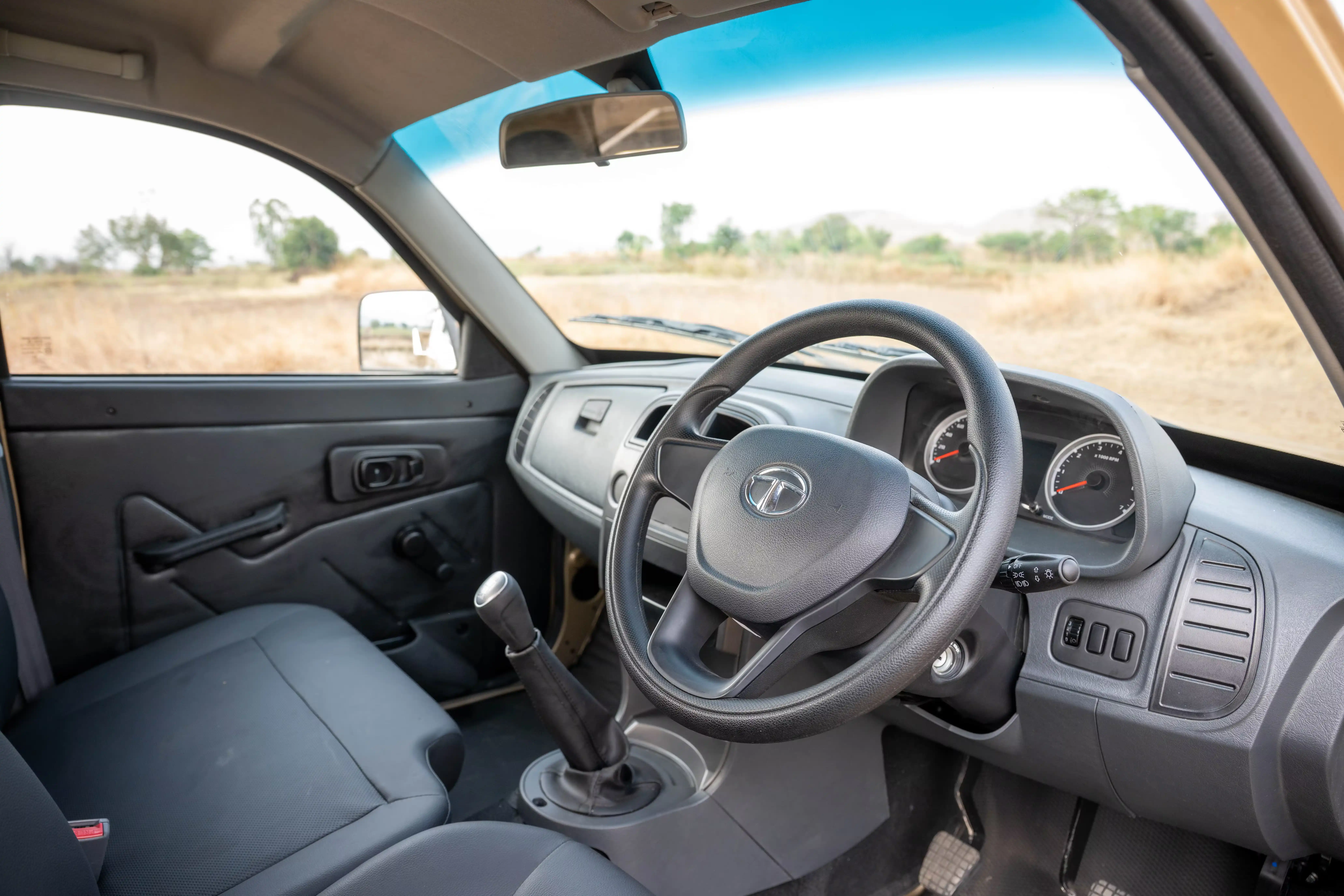

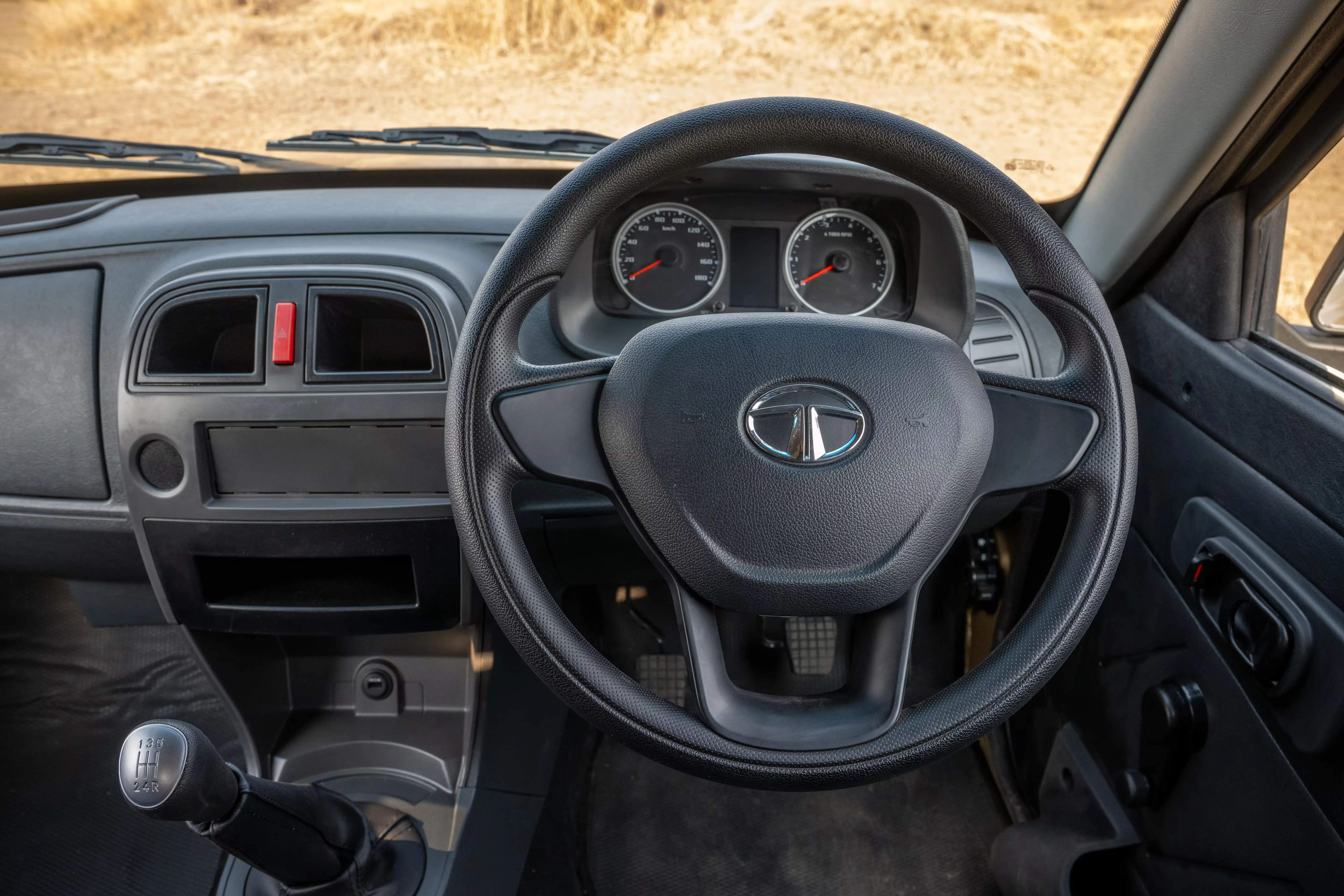

Superior driving ergonomics – adjustable power steering, reclining seat and ergonomic pedal position, for comfortable driving experience through long trips.

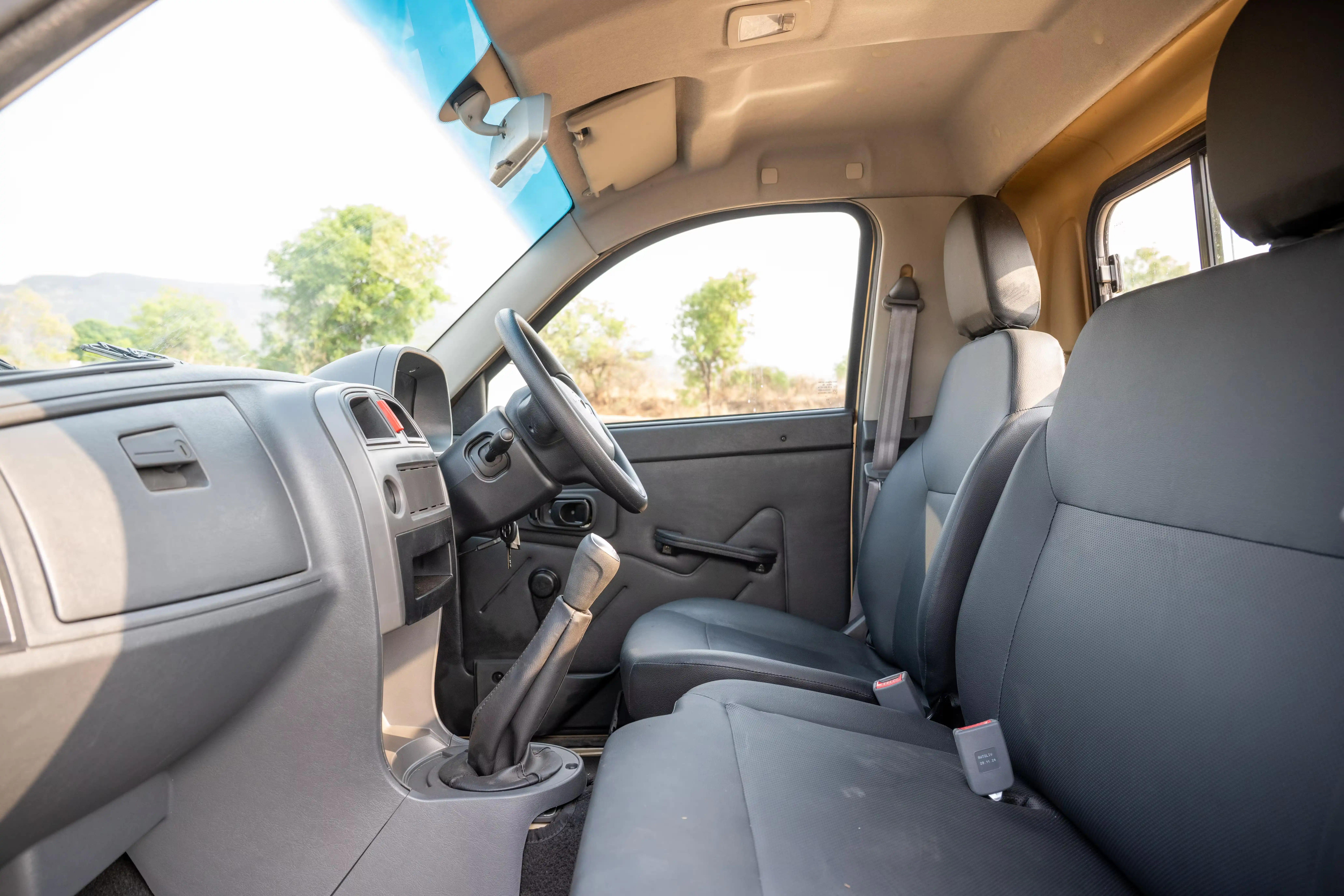

Flat laydown reclining seats with head rest.
High utility compartments in the cabin – lockable glovebox, magazine/bottle holder.

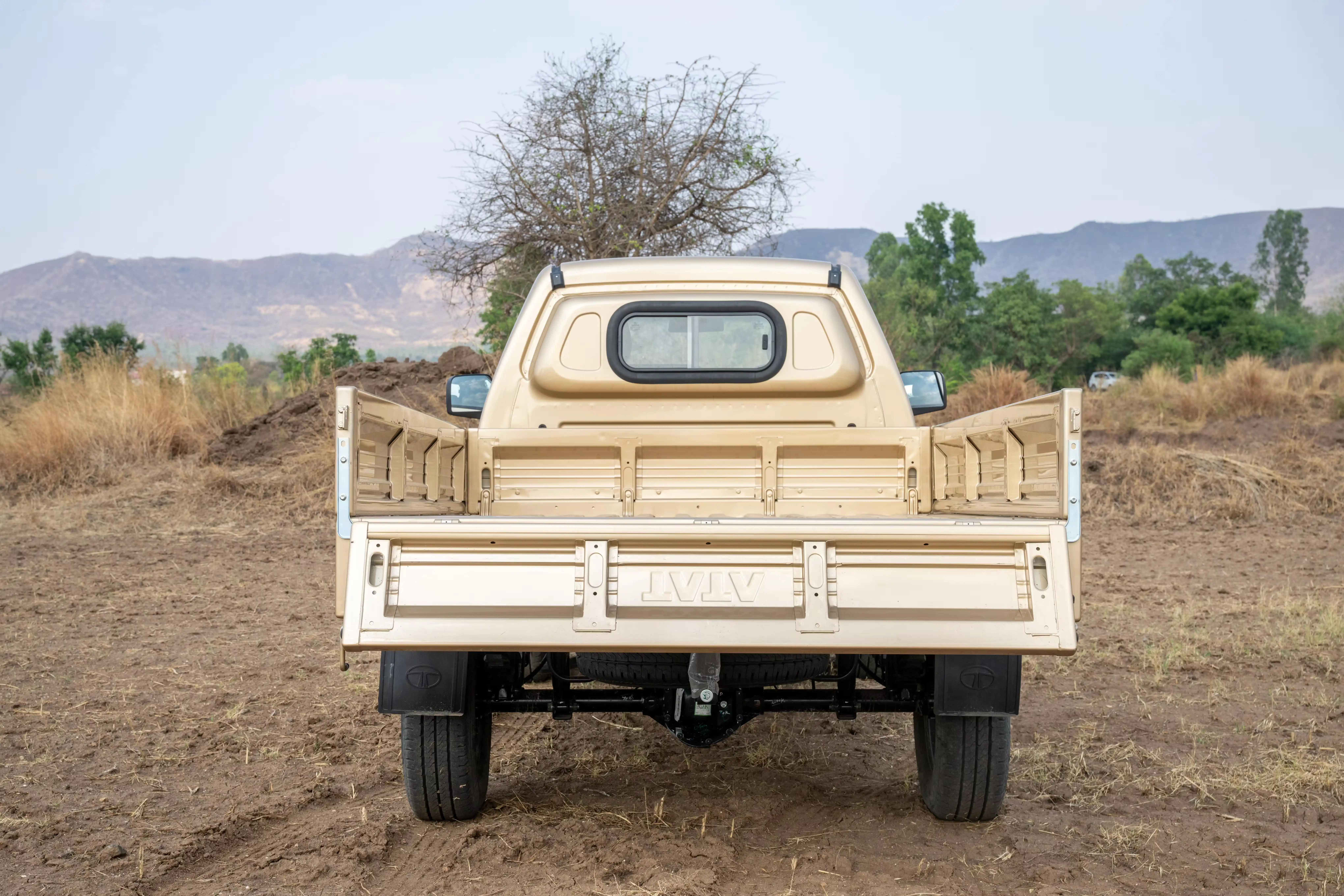

Advanced features for additional convenience – fast mobile charger, RPAS and sliding window on cabin rear wall.

Engine

Type	Tata 4SP SGI NA CNG
Power	55.2 kW (74HP) @ 3 000 r/min
Torque	200 Nm @ 1 400-1 600 r/min
Gradeability	32%

Clutch and Transmission

Gear Box Type	GBS - 76 -5/4.1 Synchromesh 5F+1R
Steering	Power Steering
Max Speed	80 kmph

Brakes

Brakes	front-295 dia. Disc brake with twin pot calliper; rear-295 dia. Drum brake
Regenerative Brake	-
Suspension Front	Semi elliptical type leaf spring - 6 leafs
Suspension Rear	Semi elliptical type leaf spring - 9 leafs
