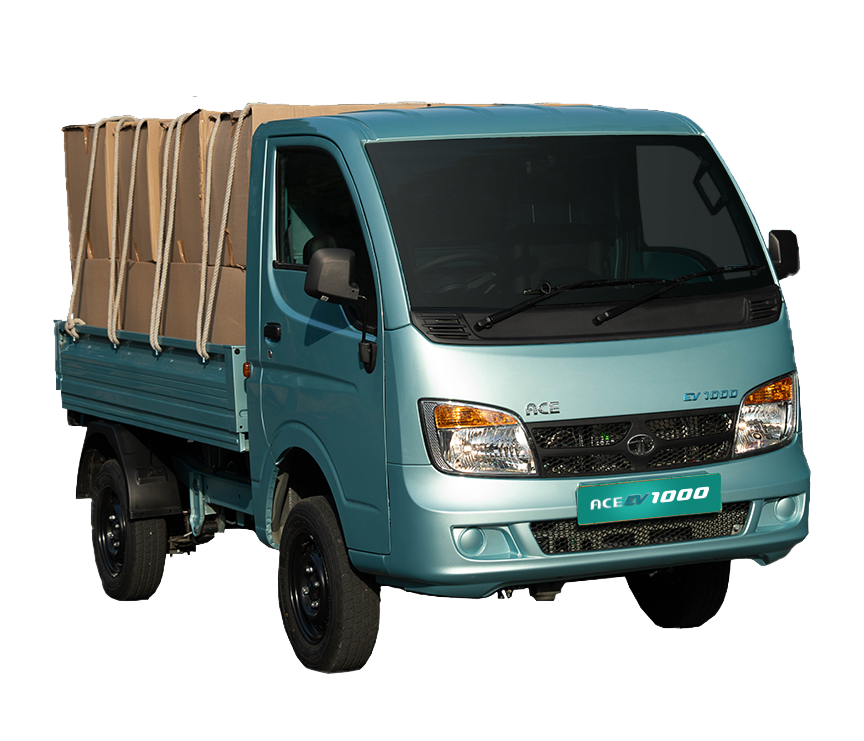

Ace EV 1000

TATA Ace EV 1000 is India's 1st and only Electric Mini Truck with a 1000 kg payload, powered by the EVOGEN. Ace EV 1000 offers a comprehensive solution for dedicated on-time delivery with zero-emission solutions for Last Mile Urban Cargo Transportation. The Ace EV 1000 features a 161*km range on a single charge and has a 7* year battery warranty

2120 kg

ଜିଡବ୍ଲୁଭି

NA

ଇନ୍ଧନ ଟାଙ୍କି କ୍ଷମତା

NA

ଇଞ୍ଜିନ

Download Brochure

ସମୀକ୍ଷା
ସ୍ପେସିଫିକେସନ୍
ଗ୍ୟାଲରି
ଟେଷ୍ଟିମୋନିଆଲ୍‌ସ

ଉନ୍ନତ ମାଇଲେଜ୍ ଏବଂ ଉତ୍ତମ ପିକ୍ ଅପ୍ ସହିତ ଅଧିକ ରୋଜଗାର କରନ୍ତୁ

High Pickup of 130 Nm and power of 36 HP for faster trips

161* km ARAI certified range in single charge
Regenerative braking while braking, coastings & downhill
Fast charging in 105* minutes - enabling multishift operations

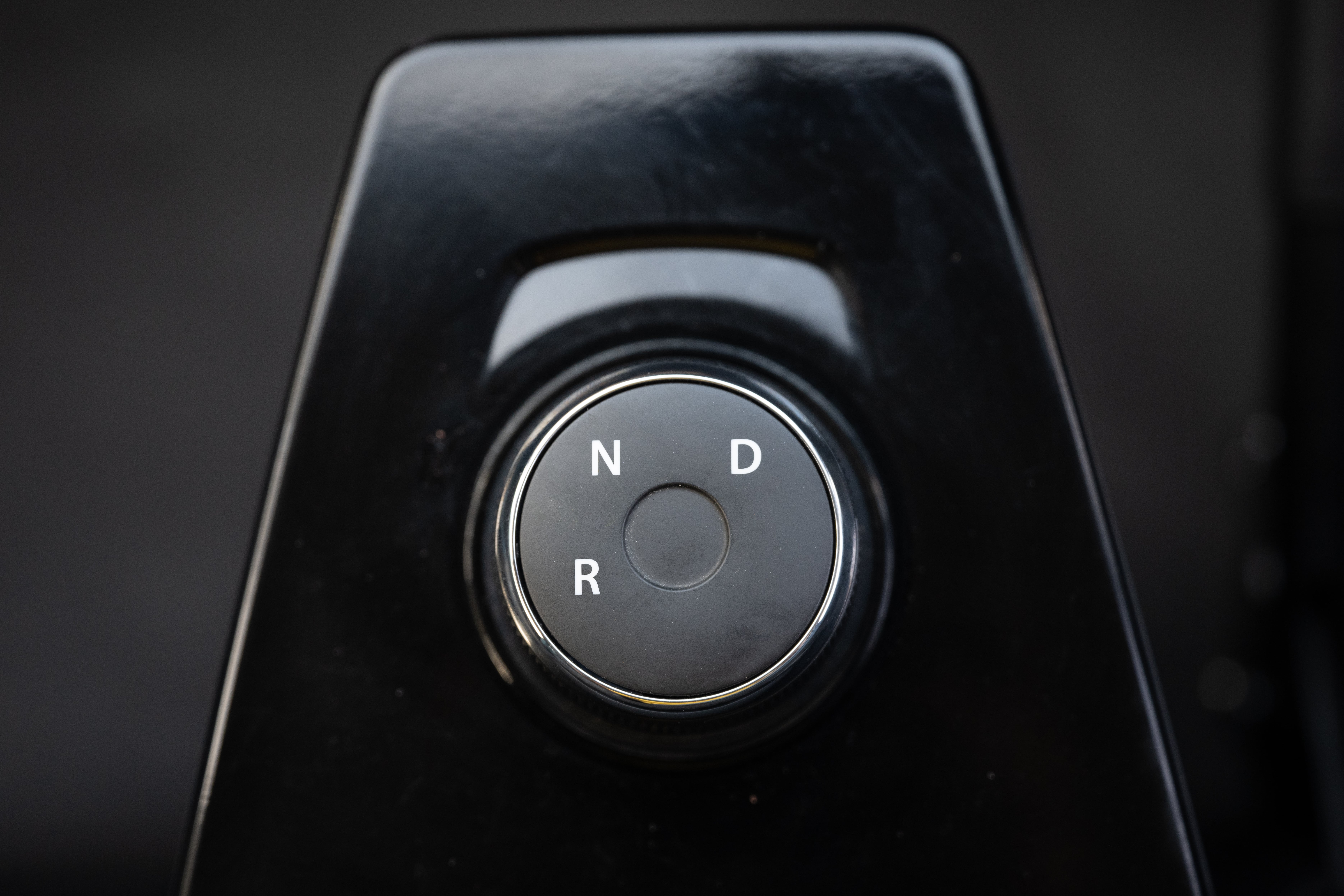

Clutchless Operations & single speed gear box for a fatigue free driving

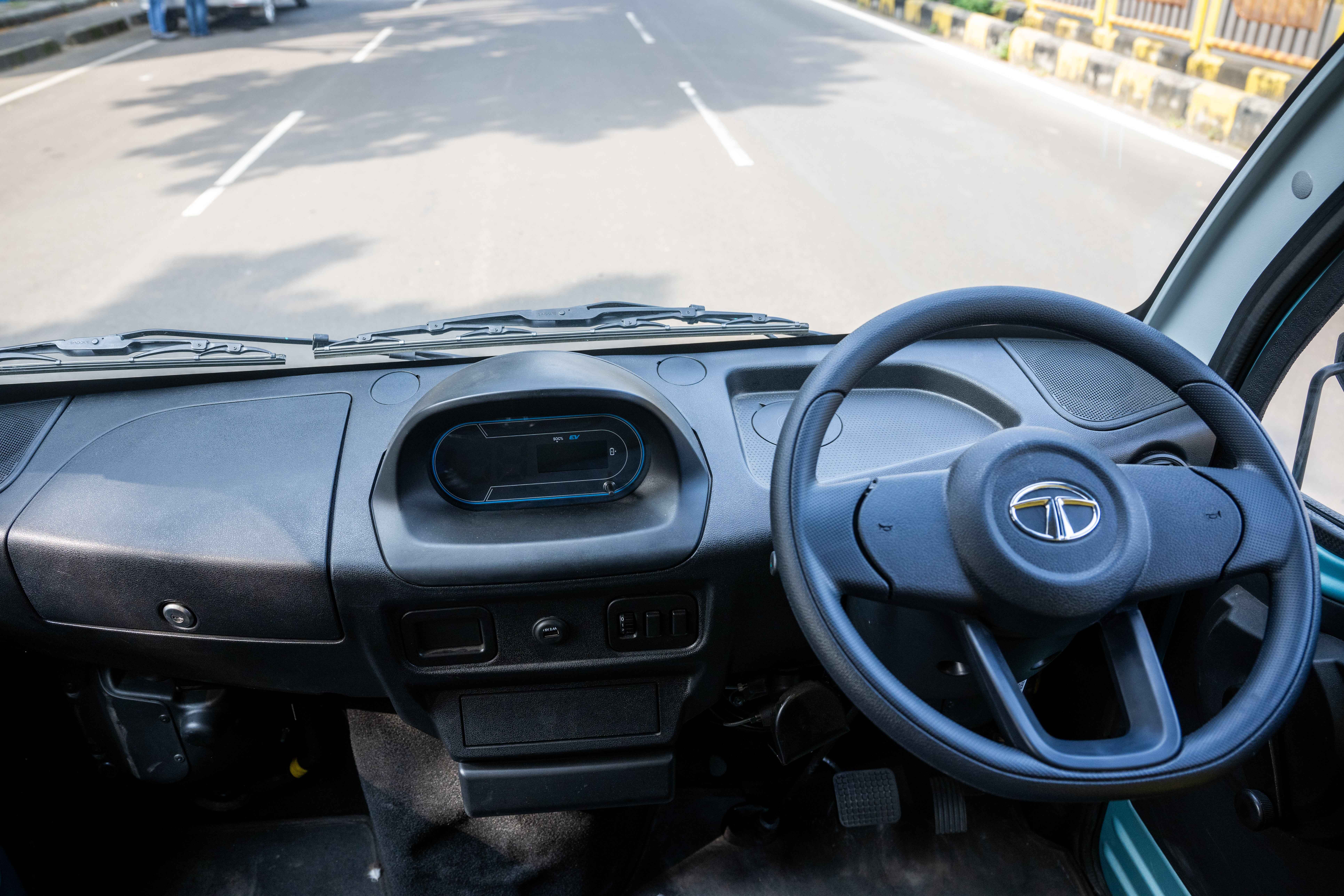

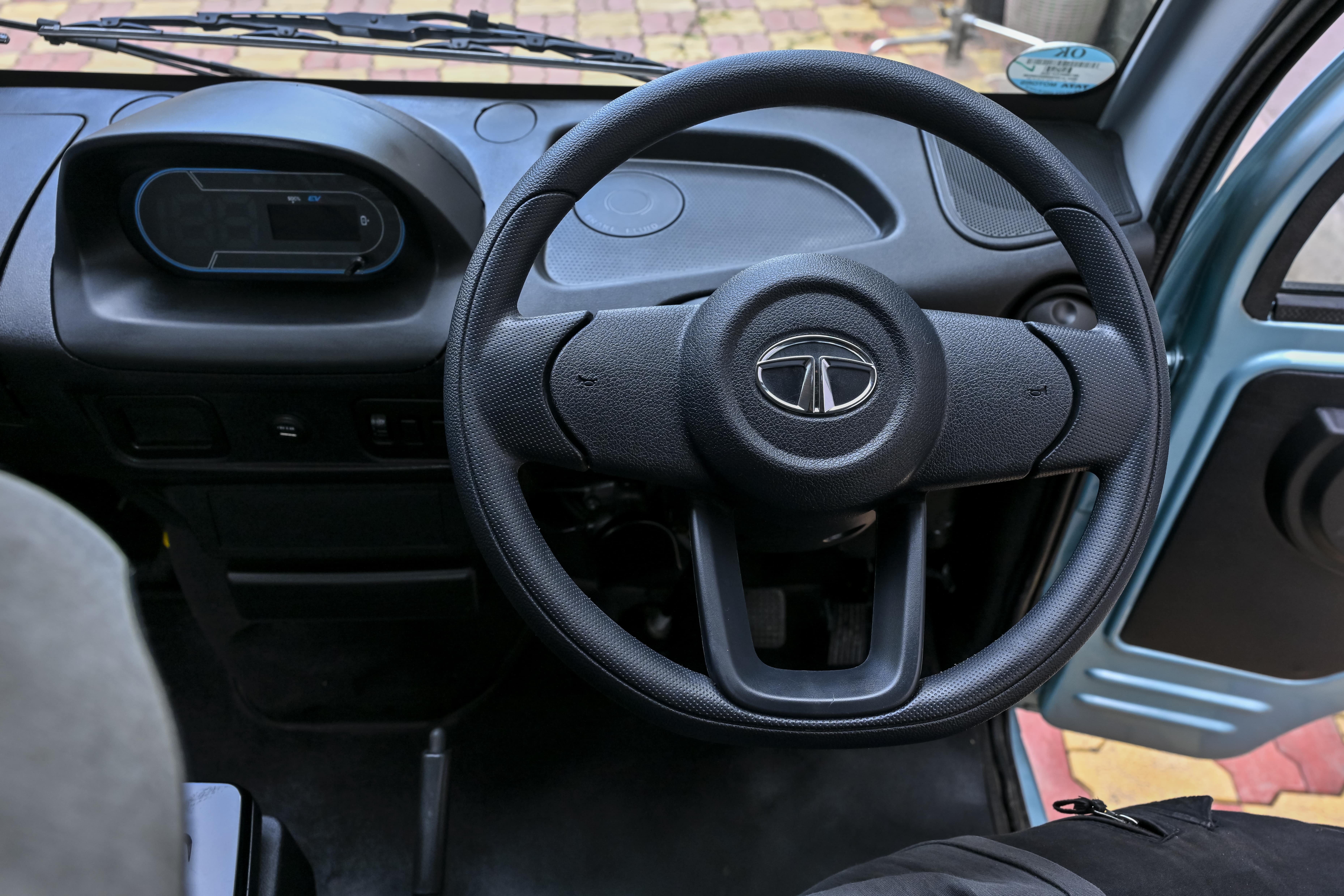

Low effort Steering Wheel
Fleetedge solution for real time vehicle tracking and analysis

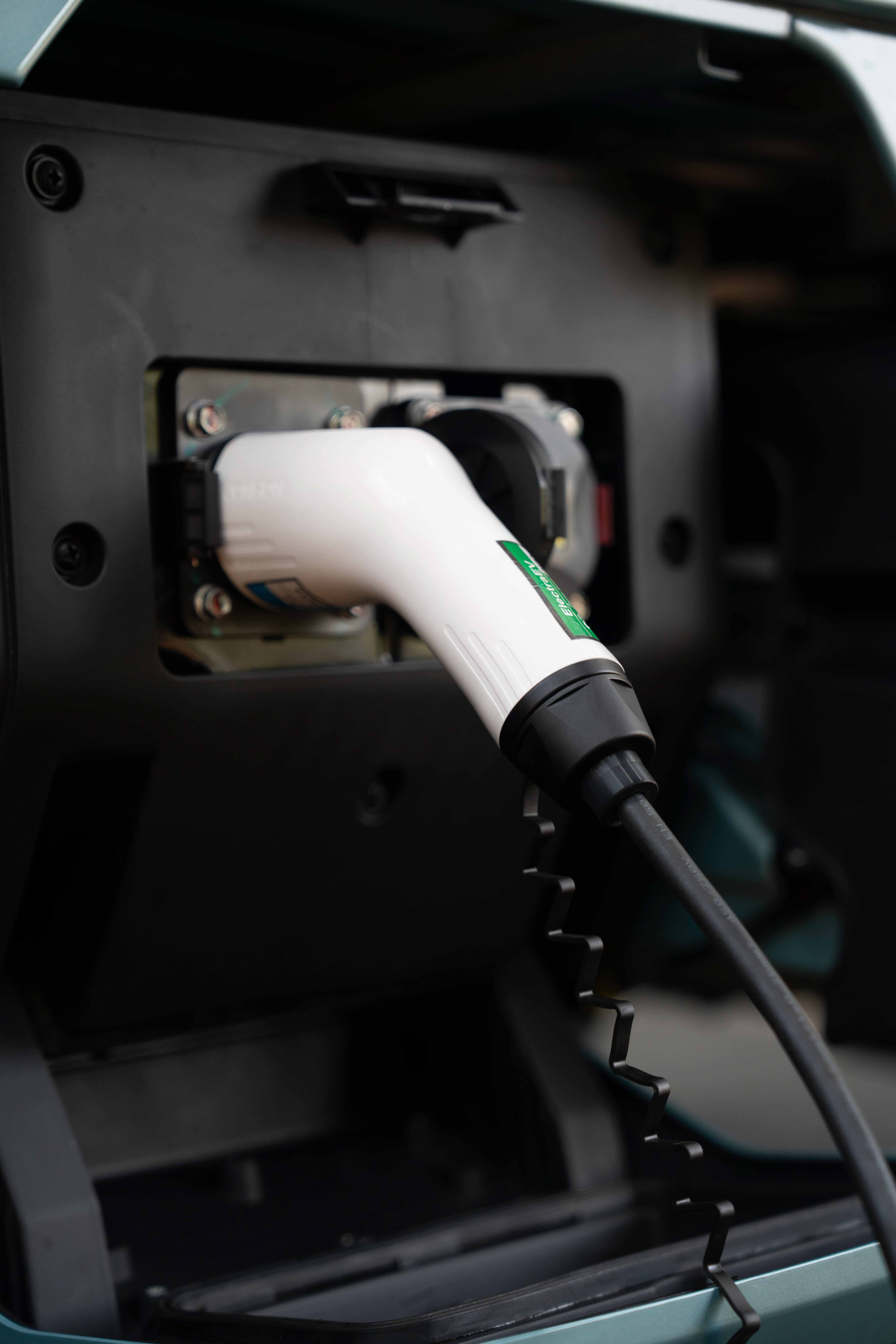

Ease of charging at Home through 16 Amp socket

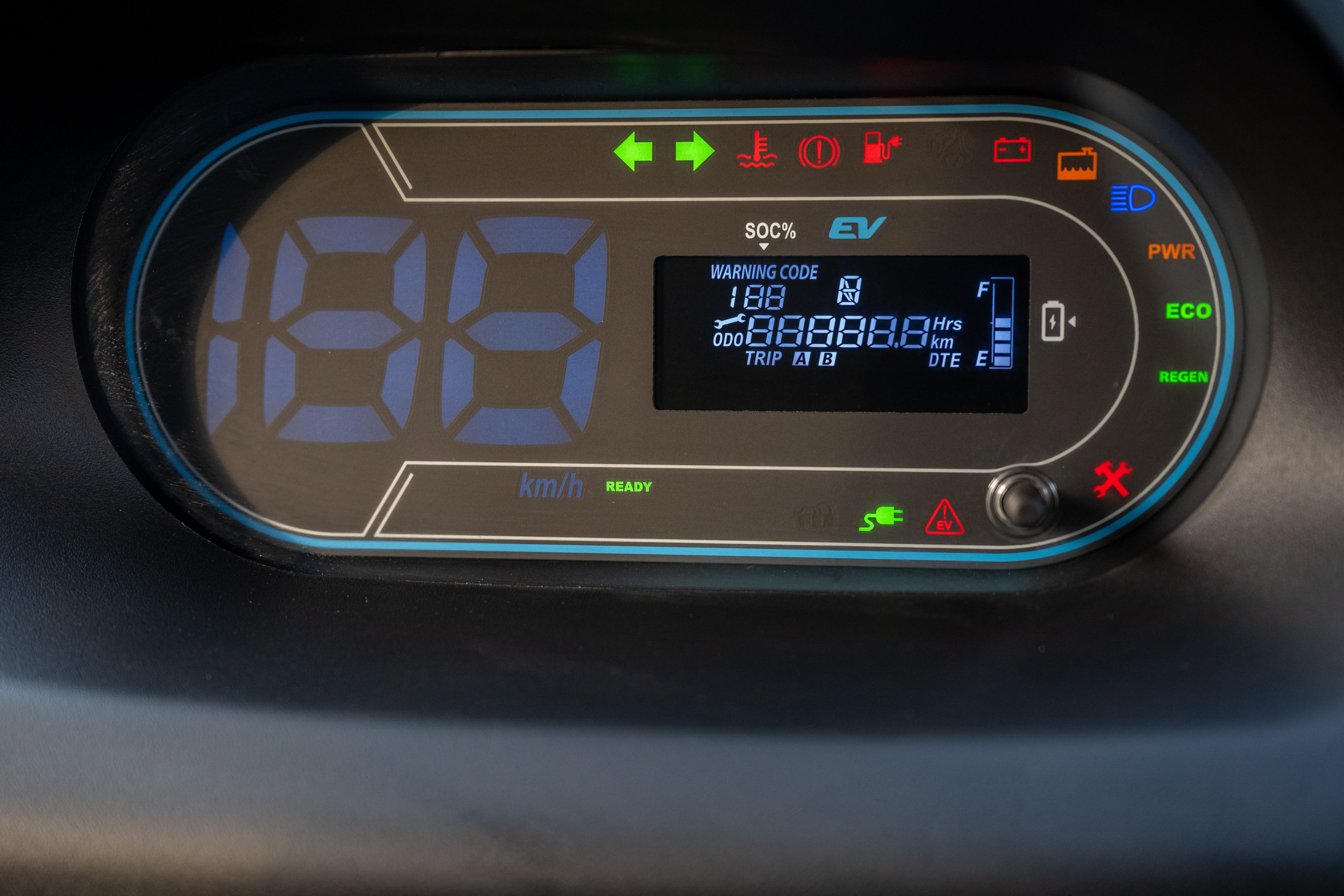

Digital instrument cluster

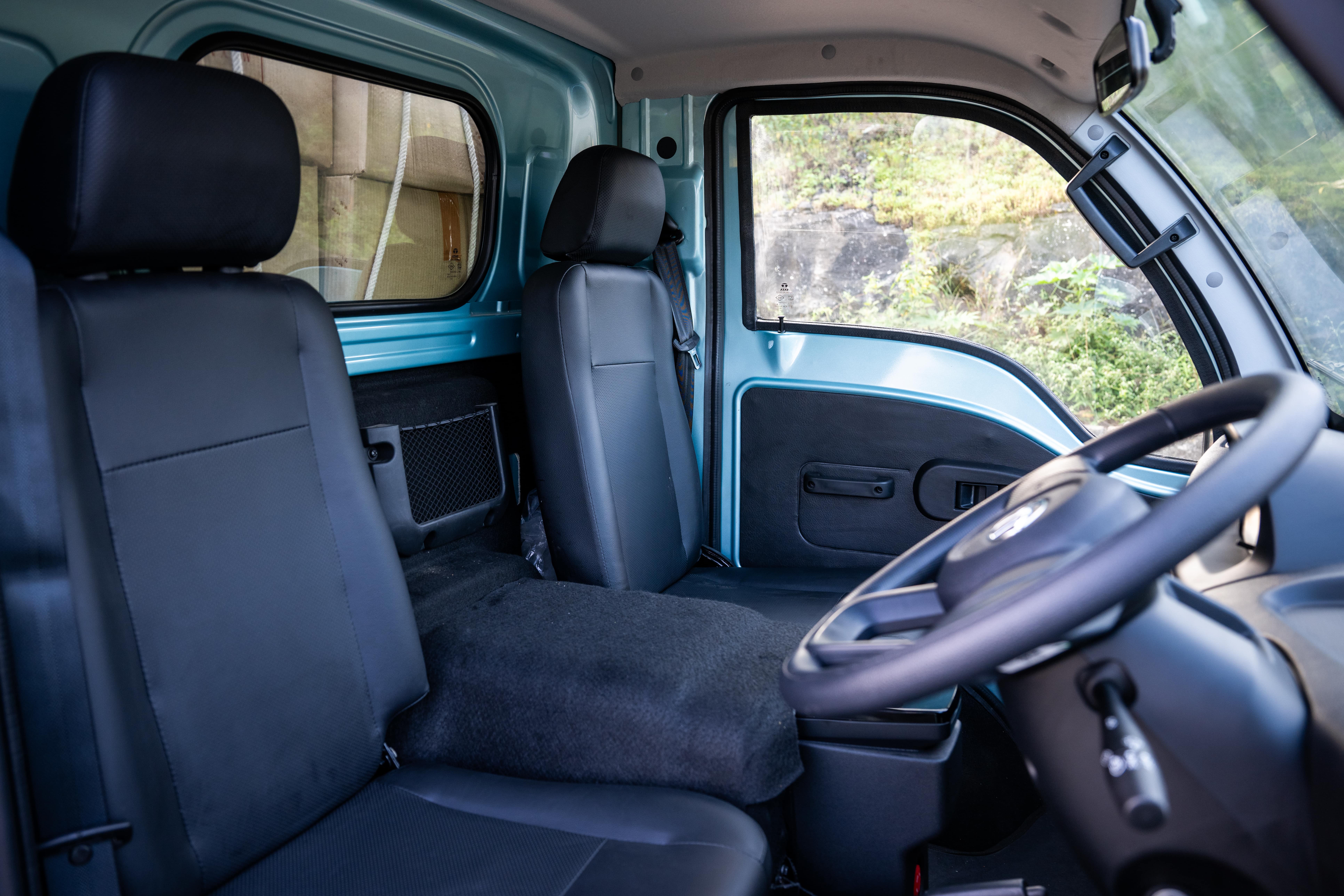

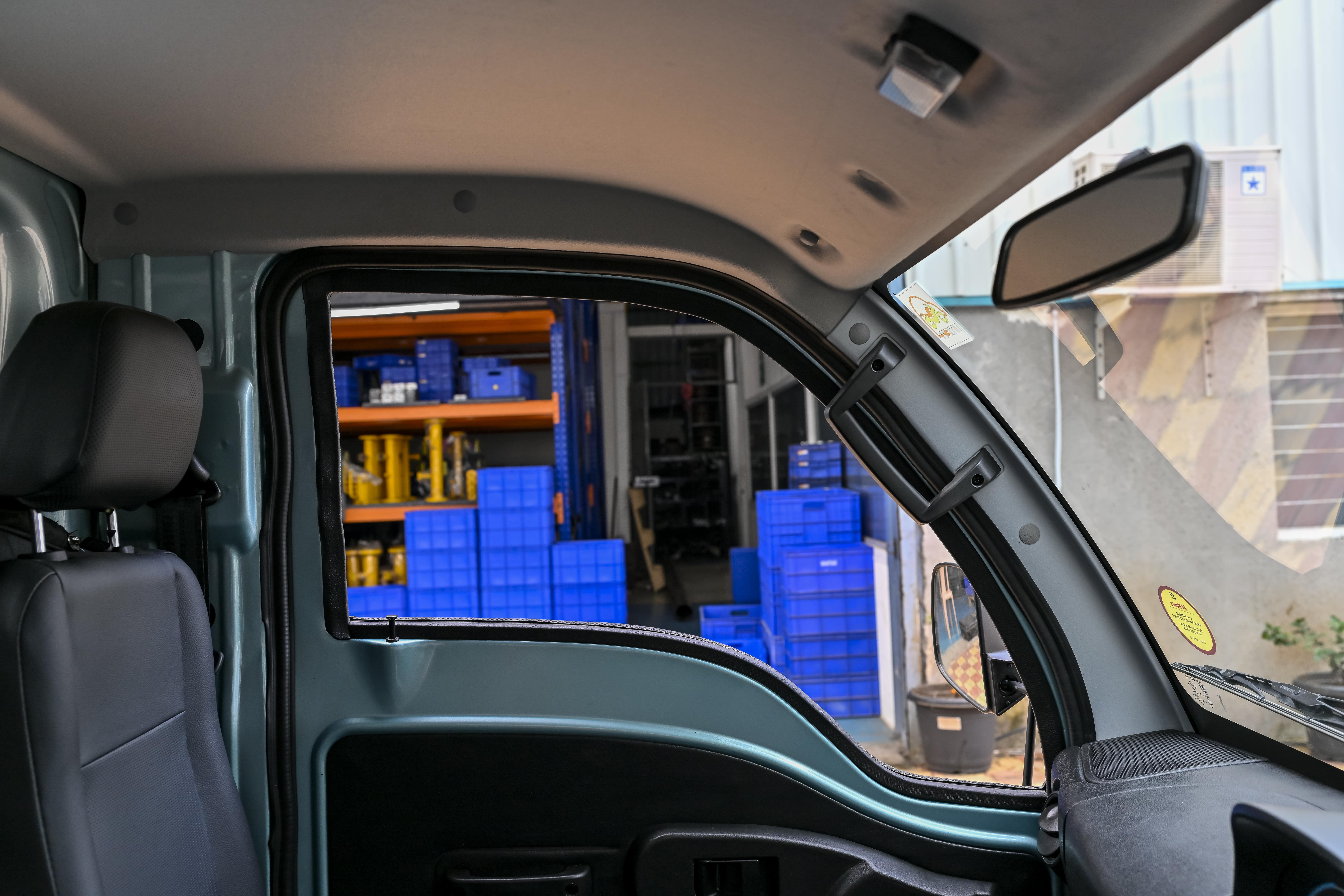

Seats with Head Rest & Ample leg room

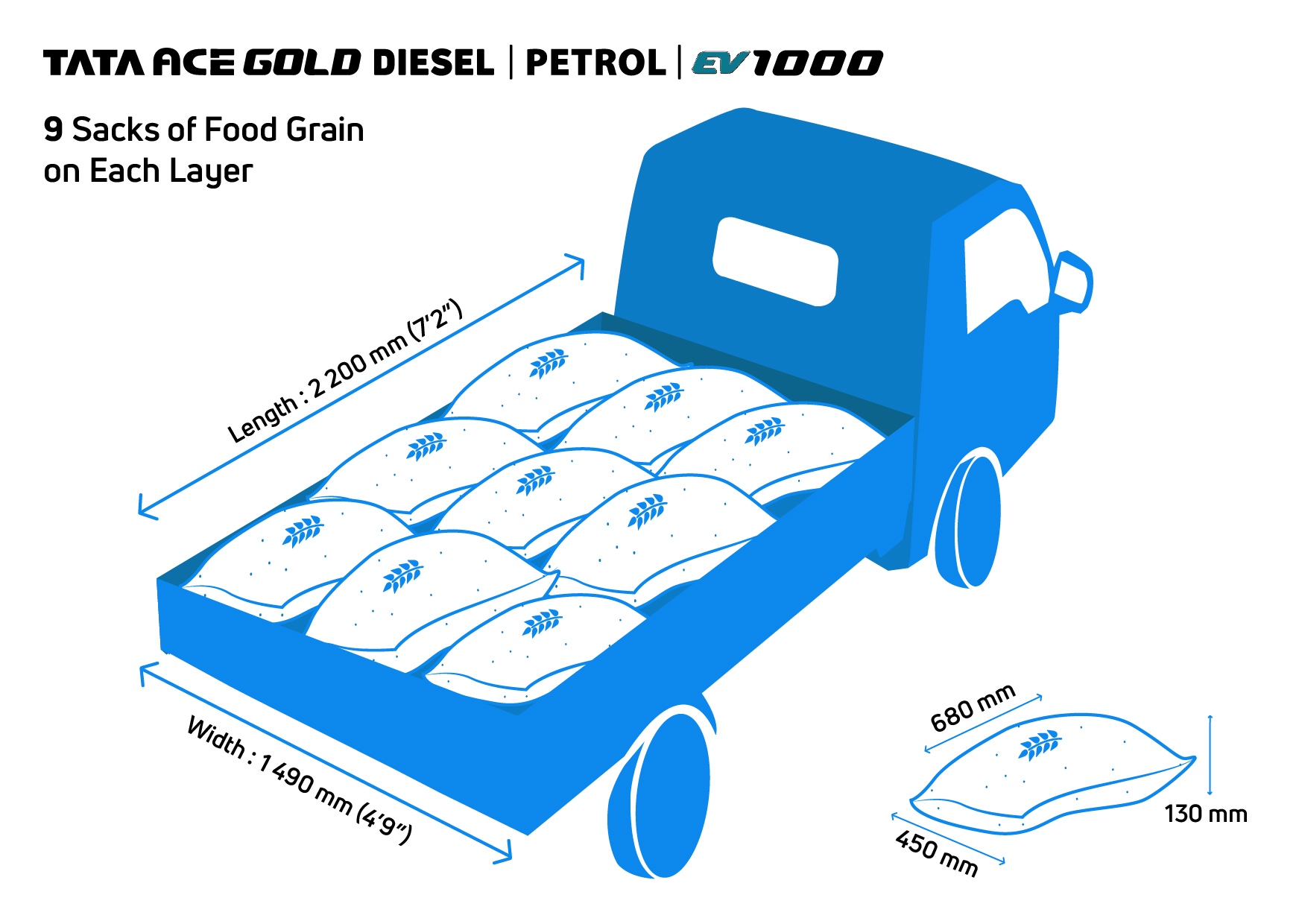

Higher Payload of 1000 kg
High Loadability due to Front & rear leaf spring suspension
Heavy Duty Chassis
Bigger 13" tyre for higher loadability

Fewer moving parts leading to lower maintenance and higher uptime
Lower cost of operations leading to savings in running cost
Liquid cooled Battery Cooling Technology for enhanced battery safety & its life

High Loadability for higher revenues
161* km of range in single charge leading to savings in running cost
7* year HV Battery warranty with enhanced battery life

ଇଞ୍ଜିନ

ଟାଇପ୍	Lithium Ion Iron phosphate (LFP) Battery
ପାୱାର	27 kW (36 HP) @ 2000 rpm
ଟର୍କ	130 Nm @ 2000 rpm
ଗ୍ରେଡେବିଲିଟି	20%

କ୍ଲଚ୍ ଏବଂ ଟ୍ରାନ୍ସମିସନ

ଗିଅର୍ ବକ୍ସ ଟାଇପ୍	Single speed Gearbox
ଷ୍ଟିୟରିଂ	Mechanical, Variable Ratio
ସର୍ବାଧିକ ବେଗ ଘଣ୍ଟା ପ୍ରତି	60 kmph

ବ୍ରେକ୍ସ

ବ୍ରେକ୍ସ	Dual circuit Hydraulic brakes
ରିଜେନେରେଟିଭ୍ ବ୍ରେକ୍	Yes
ସସ୍ପେନ୍ସନ୍ ଫ୍ରଣ୍ଟ	Rigid Axle with Parabolic Leaf Spring
ସସପେନ୍ସନ୍ ରିଏର	Live Axle with Semi-elliptical Leaf Spring

ଚକ ଏବଂ ଟାୟାର

ଟାୟାରtd>	155 R13 LT 8PR Radial (Tubeless Type)

ଯାନ ପରିମାପ (ମିମି)

ଦୈର୍ଘ୍ୟ	3800 mm
ପ୍ରସ୍ଥ	1500 mm
ଉଚ୍ଚତା	1840 mm
ହୁଇଲବେସ	2100 mm
ଫ୍ରଣ୍ଟ ଟ୍ରାକ୍	1310
ପଛ ଟ୍ରାକ୍	1343
ଗ୍ରାଉଣ୍ଡ କ୍ଲିୟରାନ୍ସ	160 mm
ମିନ୍ ଟିସିଆର	4300 mm

ଓଜନ (କେଜି)

ଜିଭିଡବ୍ଲୁ	2120 kg
ପେଲୋଡ୍	1000 kg

ବ୍ୟାଟେରୀ

ବ୍ୟାଟେରୀ କେମିଷ୍ଟ୍ରି	LFP (Lithium-Iron Phosphate)
ବ୍ୟାଟେରୀ ଶକ୍ତି (କେଡବ୍ଲୁଏଚ)	21.3
ଆଇପି ରେଟିଂ	67
ସାର୍ଟିଫାଏଡ୍ ରେଞ୍ଜ	161 km in single charge
ଧୀର ଚାର୍ଜିଂ ସମୟ	7 hrs (10% to 100%)
ଦ୍ରୁତ ଚାର୍ଜିଂ ସମୟ	105 min (10% to 80%)
